Main Control Valve Body: Notes

SPECIAL TOOL(S)

G04661324Courtesy of FORD MOTOR CO.
 Remover, Pump Bearing/Seal
307-394

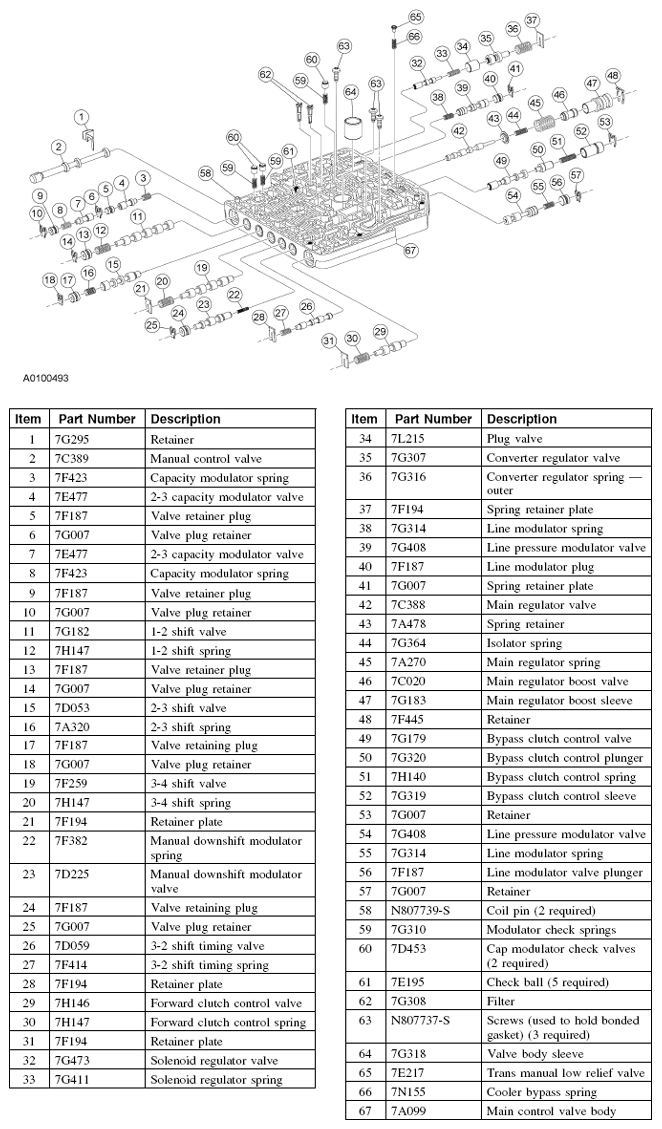

Fig 1: Exploded View Of Main Control Valve Body
G04661325Courtesy of FORD MOTOR CO.

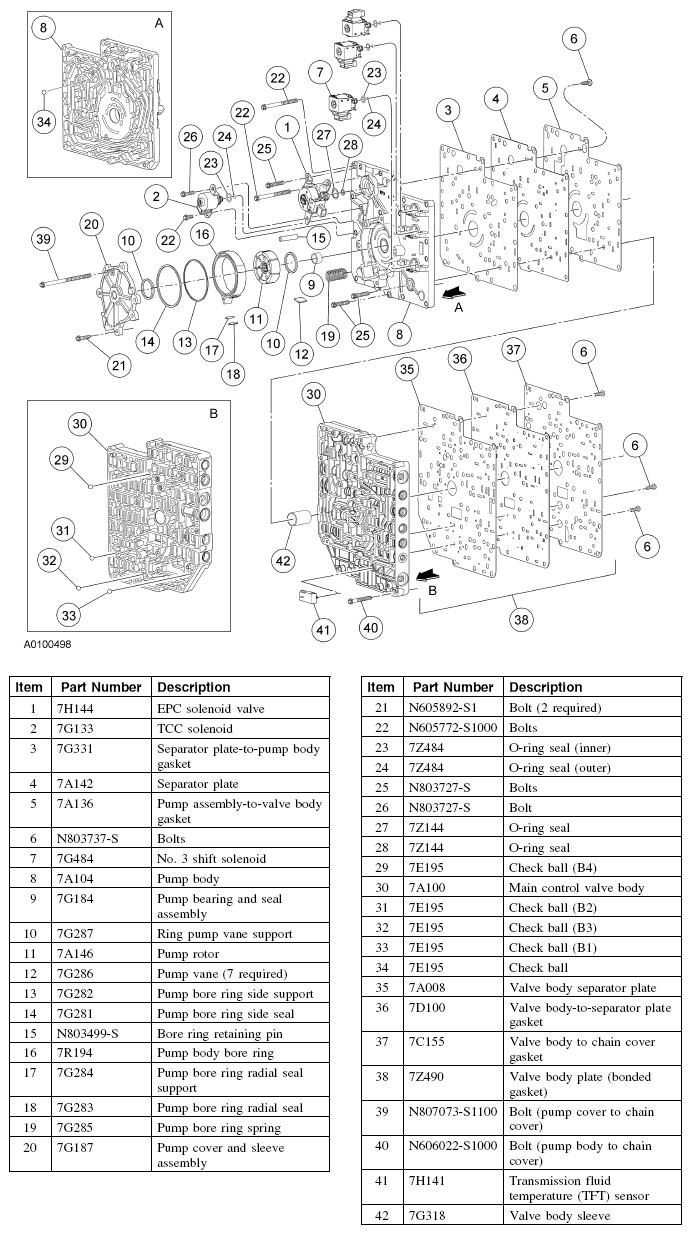

Fig 2: Exploded View Of Main Control Pump Assembly
G04661326Courtesy of FORD MOTOR CO.
