Sun and Shell Assembly - Assembly: Notes

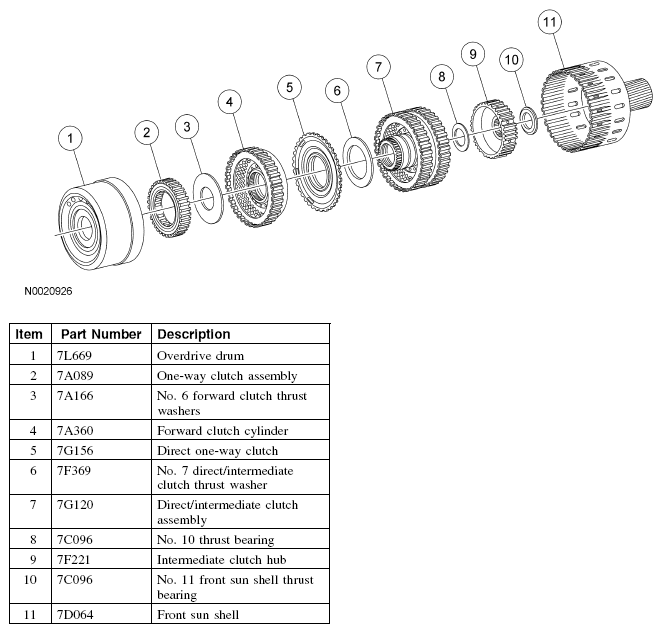

Fig 1: Exploded View Of Sun And Shell Assembly
G04661462Courtesy of FORD MOTOR CO.
