Home › Ford › 2006 › Freestar Base › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › Disassembly And Assembly Of Subassemblies › Sun and Shell Assembly - Disassembly › Notes

Sun and Shell Assembly - Disassembly: Notes

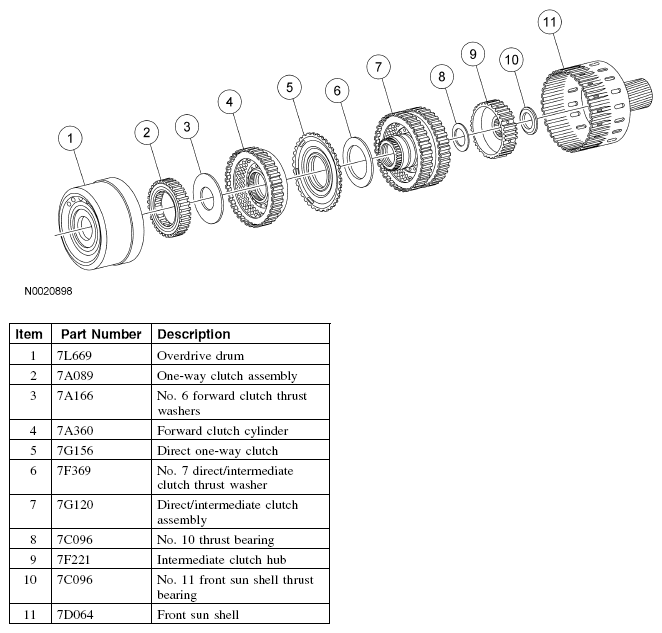

Fig 1: Exploded View Of Sun And Shell Assembly
G04661398Courtesy of FORD MOTOR CO.
