Home › Ford › 2006 › Freestar Base › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › In-Vehicle Repair › Digital Transmission Range (TR) Sensor › Notes

Digital Transmission Range (TR) Sensor: Notes

SPECIAL TOOL(S)

G04661134Courtesy of FORD MOTOR CO.
 Alignment Gauge TR Sensor
307-351 (T97L-70010-A)

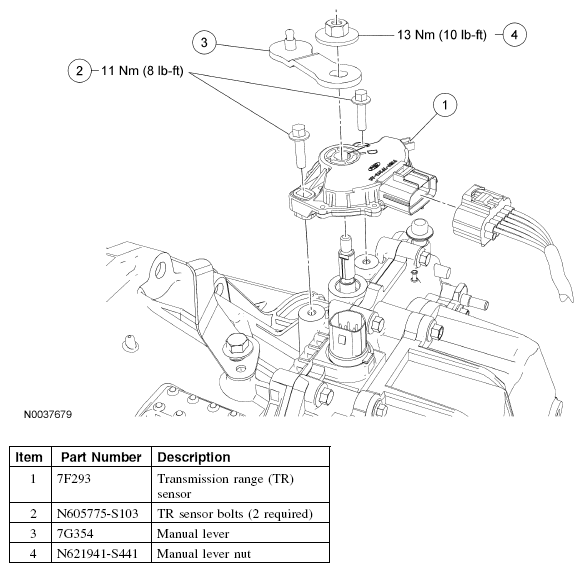

Fig 1: Digital Transmission Range (TR) Sensor Replacement Components With Torque Specifications
G04661135Courtesy of FORD MOTOR CO.
