Door lock switch, driver side: Schematic

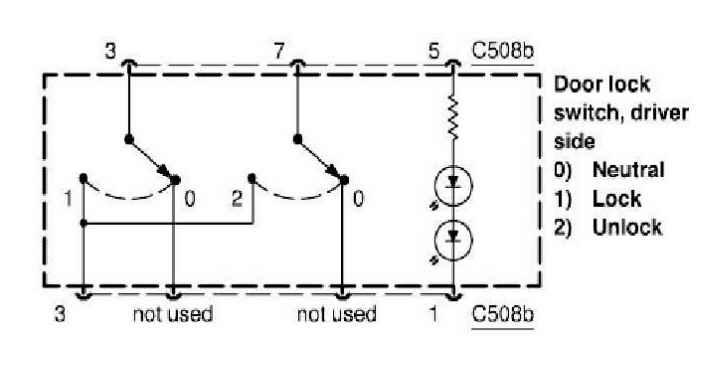

Fig 1: Door Lock Switch - Circuit Diagram (Driver Side)
G04597223Courtesy of FORD MOTOR CO.

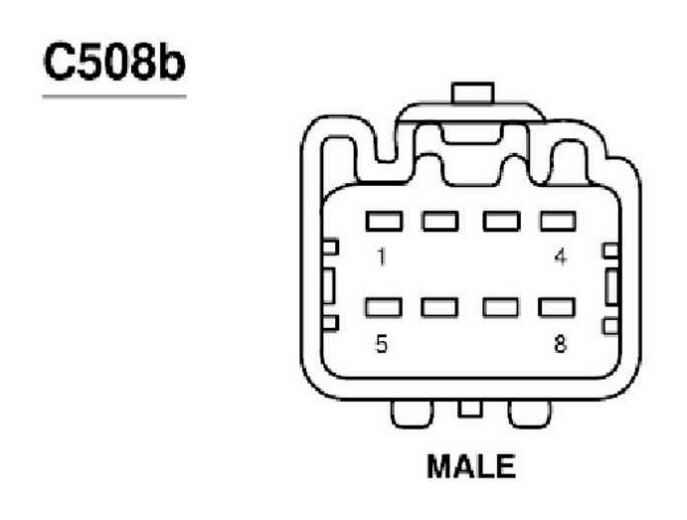

Fig 2: Identifying C508b Connector Terminals
G04597224Courtesy of FORD MOTOR CO.
