Steering Column: Notes

MATERIAL SPECIFICATION

Item	Specification
Multi-Purpose Grease XG-4 and/or XL-5	ESB-M1C93-B
Penetrating and Lock Lubricant XL-1 (Canada CXC-51-A)	-

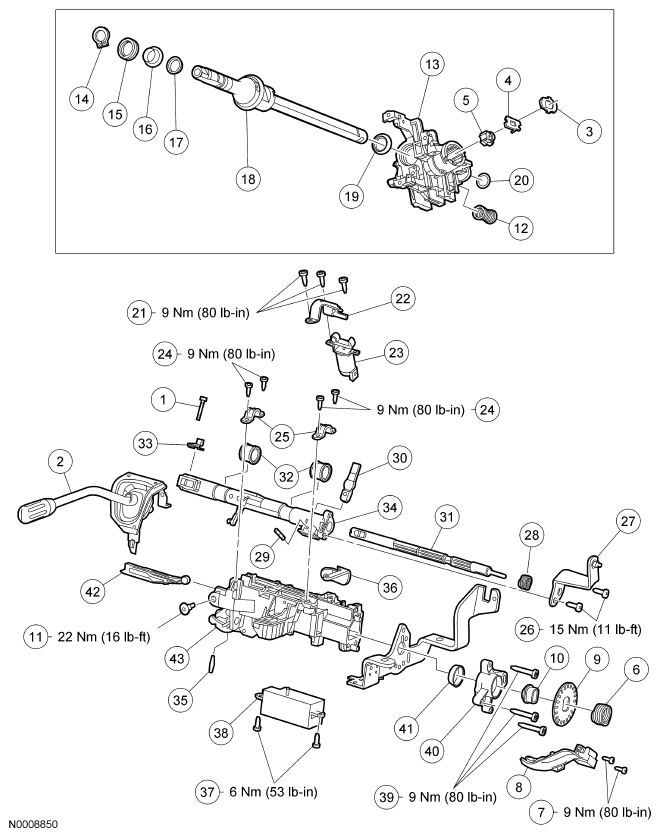

Fig 1: Exploded View Of Steering Column

Courtesy of FORD MOTOR CO.

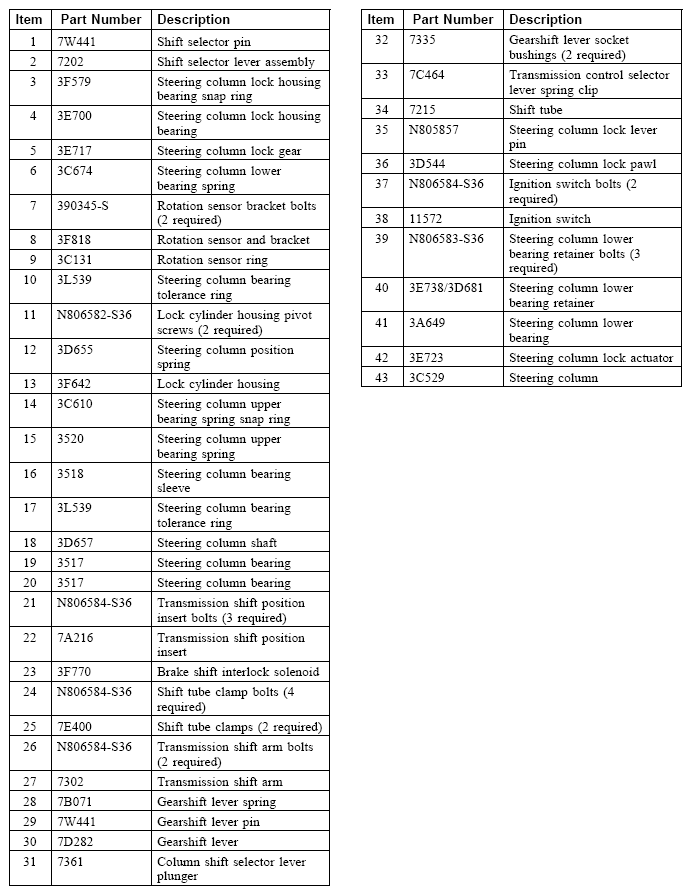

Fig 2: Steering Column Components Description

Courtesy of FORD MOTOR CO.
