Multifunction Switch, Wiper/Washer Portion: Schematic

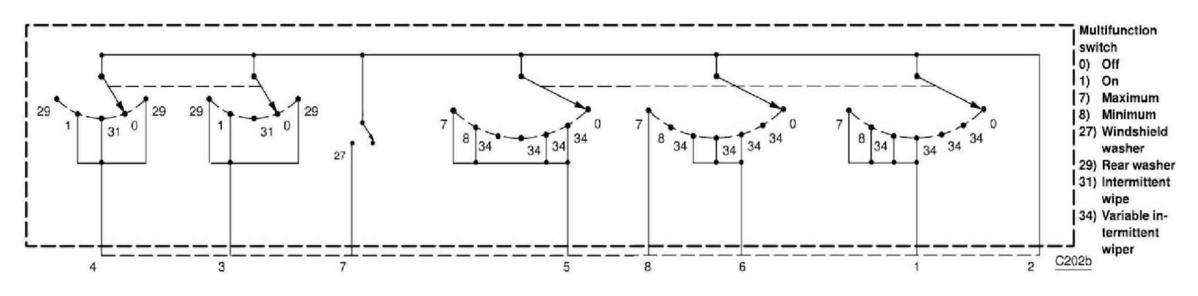

Fig 1: Multifunction Switch, Wiper/Washer Portion - Circuit Diagram
G04597217Courtesy of FORD MOTOR CO.
