Ignition switch (11572): Schematic

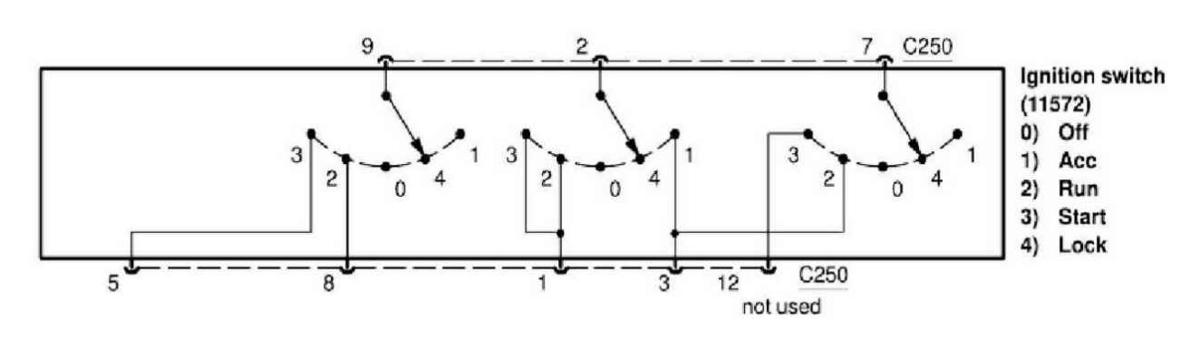

Fig 1: Ignition Switch - Circuit Diagram
G04597215Courtesy of FORD MOTOR CO.
