Relay - Micro ISO (4-Terminals): Terminals

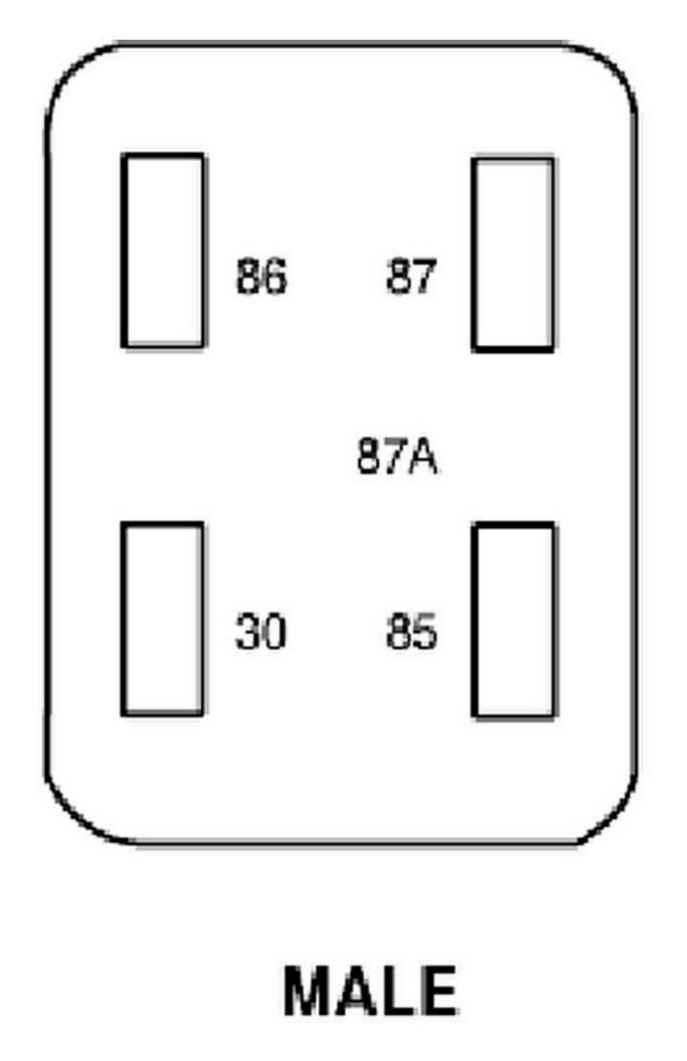

Fig 1: Identifying Relay Connector Terminal
G04597242Courtesy of FORD MOTOR CO.
