Power window switch, RH side front: Schematic

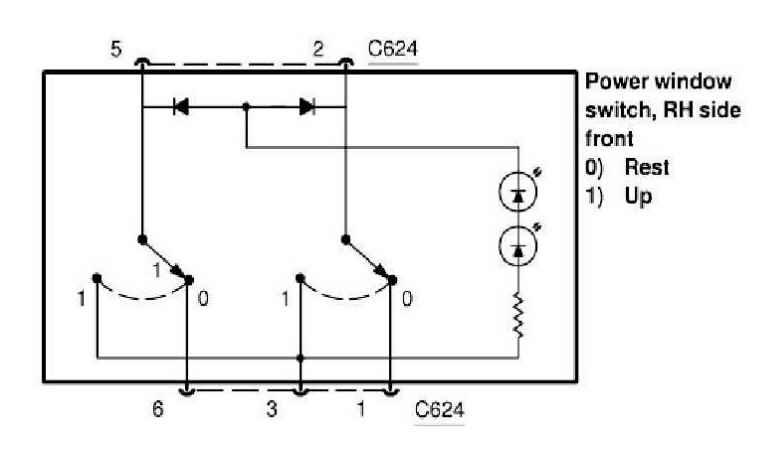

Fig 1: Power Window Switch - Circuit Diagram (RH Side Front)
G04597225Courtesy of FORD MOTOR CO.
