Hydraulic Control Unit (HCU): Notes

MATERIAL

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1)	ESA-M6C25-A

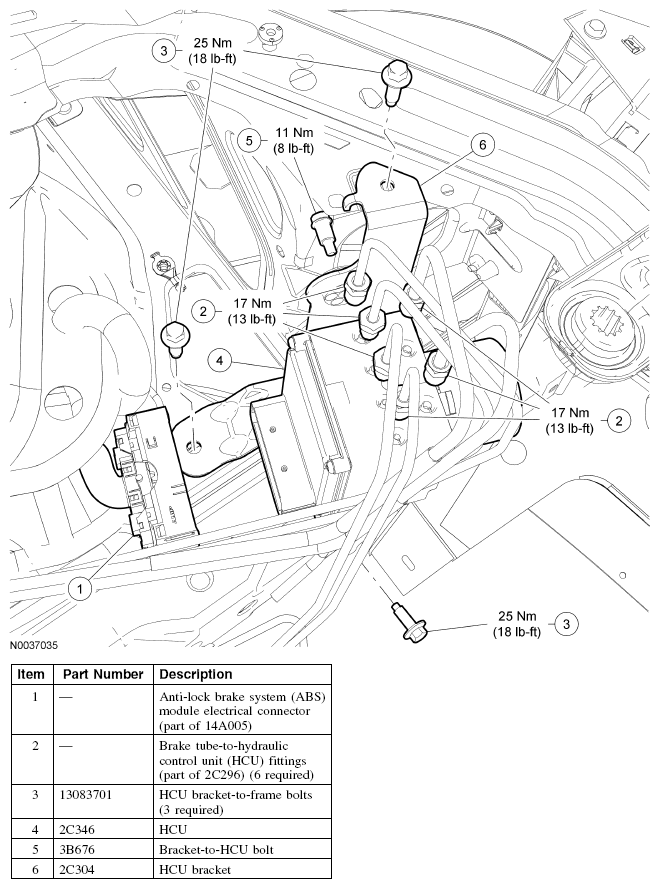

Fig 1: Hydraulic Control Unit (HCU) Replacement Components - With Torque Specifications
