Safety Belt Retractor - Rear: Notes

NOTE: RH side shown, LH side similar.

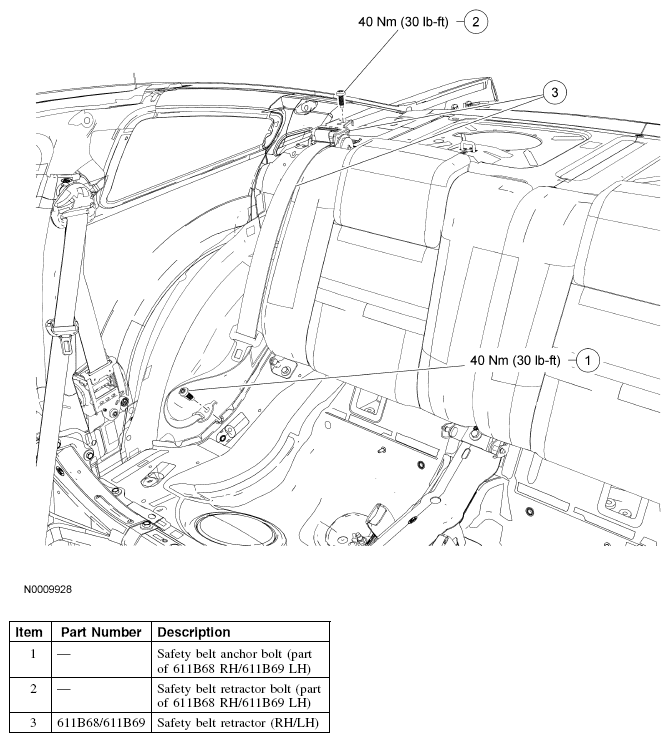

Fig 1: Rear Safety Belt Retractor Replacement Components - With Torque Specifications

G04698185
