Toe Adjustment - Front

Start the engine and center the steering wheel.
Turn the engine off and, using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.
Using alignment equipment and the manufacturer's instructions, measure the front toe.
Remove the clamps.

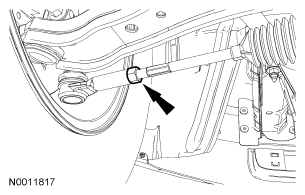

Fig 1: Locating Clamps
Loosen the jam nuts.

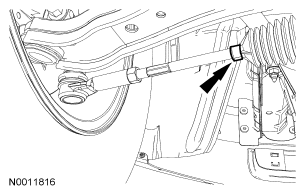

Fig 2: Locating Jam Nuts

NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.
Rotate the inner tie rods until the toe reading is within specifications.

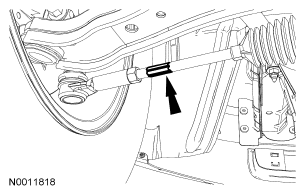

Fig 3: Locating Inner Tie Rod

NOTE: Do not allow the inner tie rods to rotate while tightening the jam nuts.
Tighten the jam nuts to 55 Nm (41 lb-ft).

Fig 4: Locating Jam Nuts
Install the clamps.

Fig 5: Locating Clamps
Recheck the toe settings and adjust as necessary.
