Forward Clutch: Notes

SPECIAL TOOL(S)

	Compressor, Clutch Spring 307-015 (T65L-77515-A)
	Protector, Piston Seal 307-051 (T74P-77548-A)
	Bonded Piston Seal Sizer 307-434

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

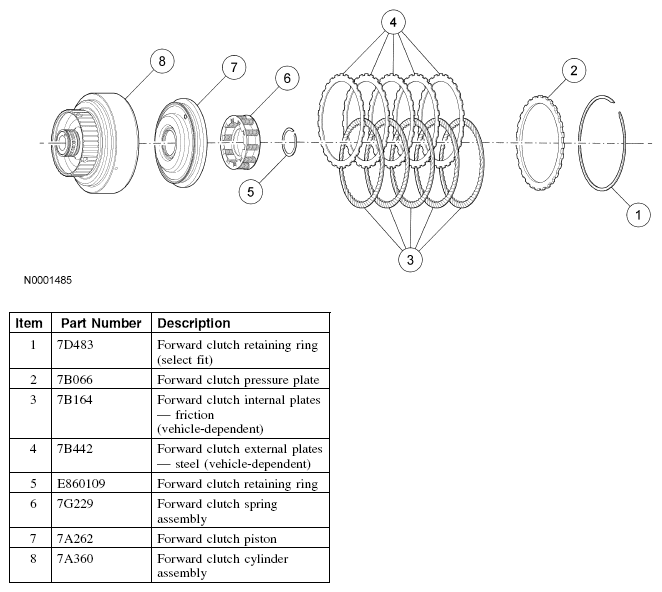

Fig 1: Identifying Forward Clutch Assembly Components
