Main Control Valve Body: Notes

SPECIAL TOOL(S)

Aligner, Valve Body (2 required) 307-334 (T95L-70010-C)

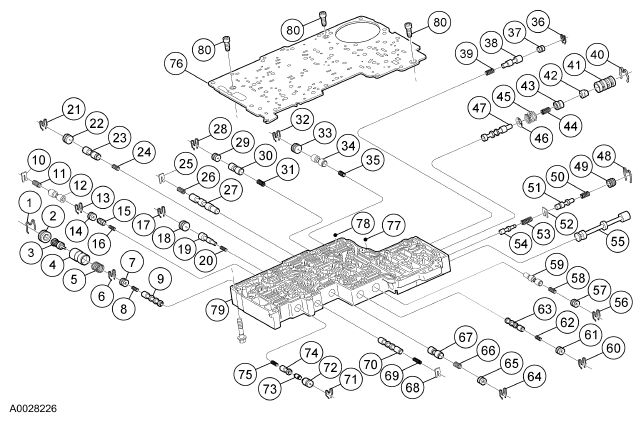

Fig 1: Exploded View Of Main Control Valve Body Components

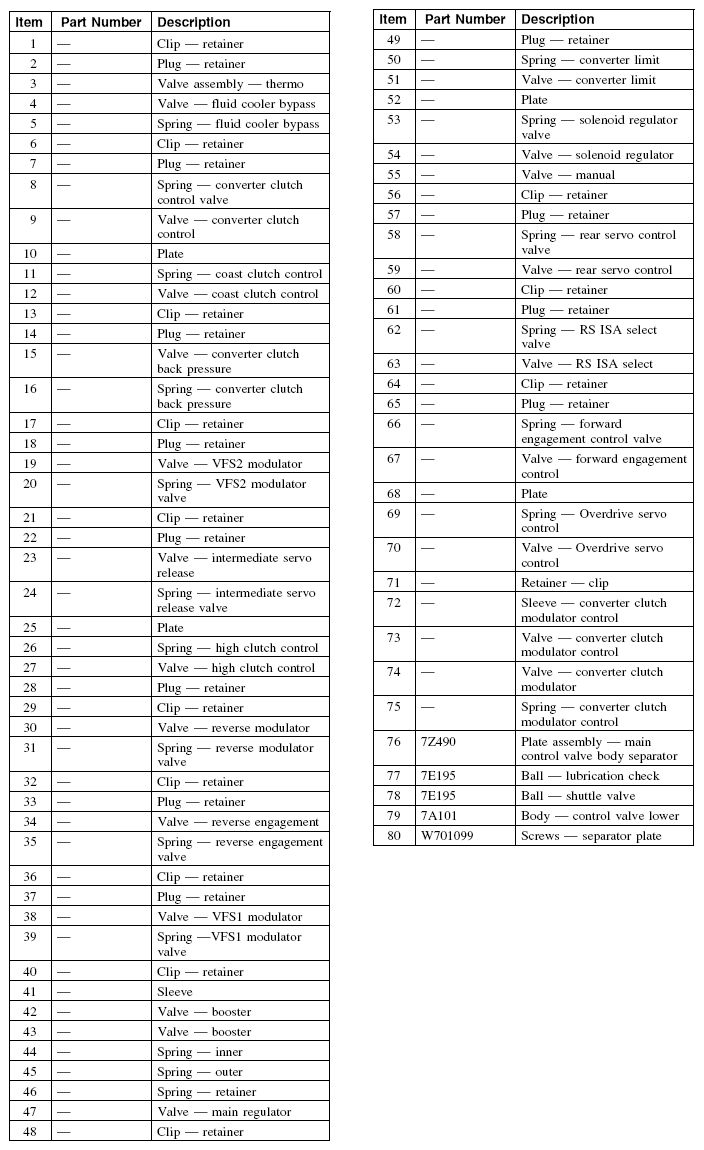

Fig 2: Main Control Valve Body Components Description Chart
