Solenoid Body Assembly: Notes

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

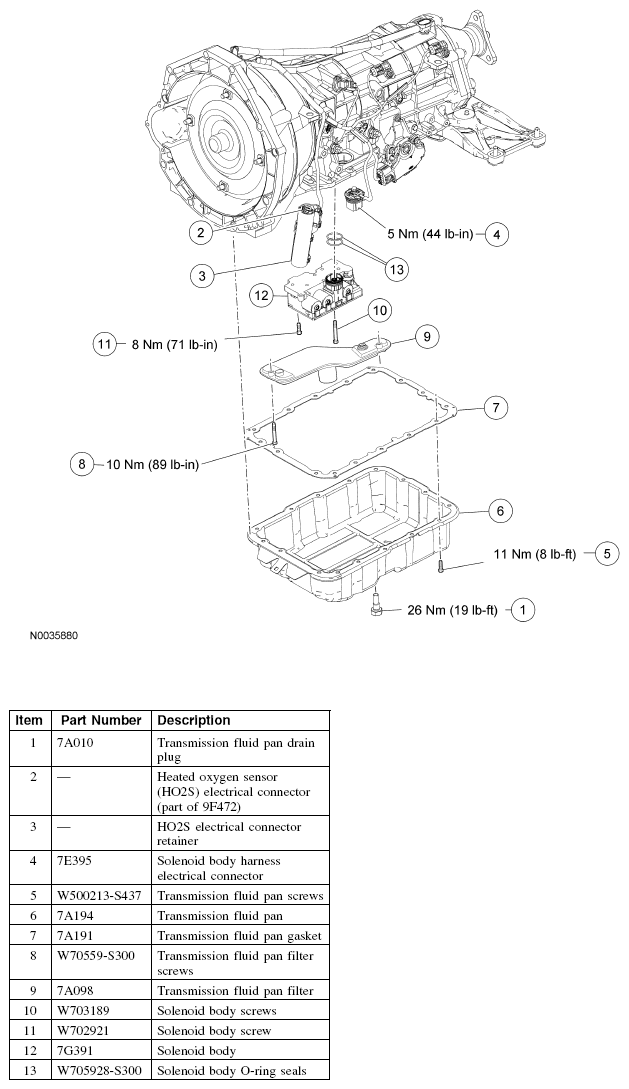

Fig 1: Identifying Solenoid Body Assembly Components

G04696234
