Notes
Seat Backrest - Front: Notes
NOTE:
Driver backrest shown, passenger backrest similar.

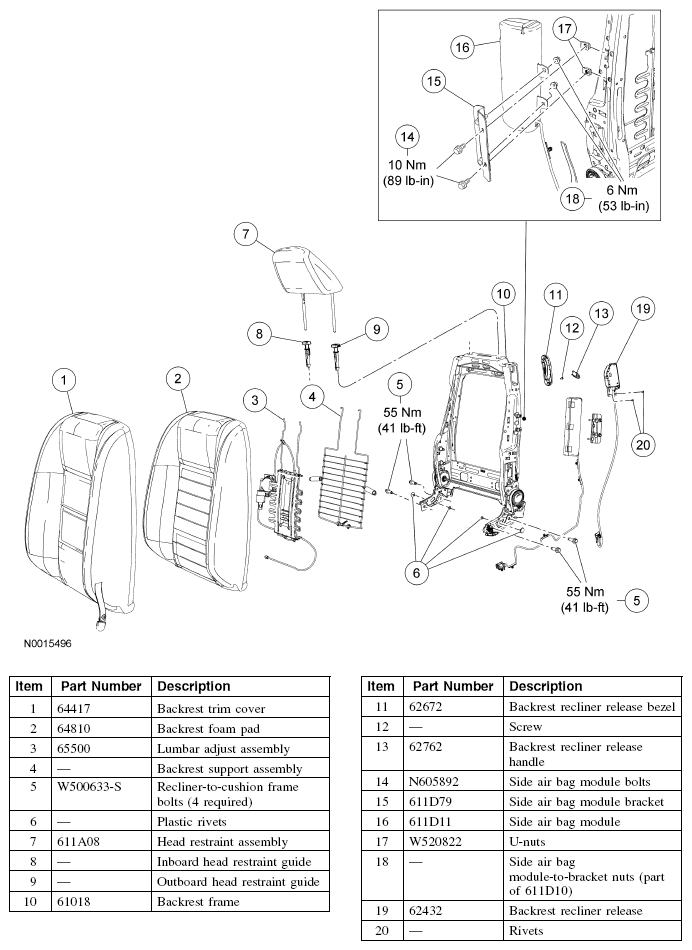

Fig 1: Exploded View Of Front Seat Backrest - With Torque Specifications
