Exhaust Gas Recirculation (EGR) System Module and Tube - Exploded View

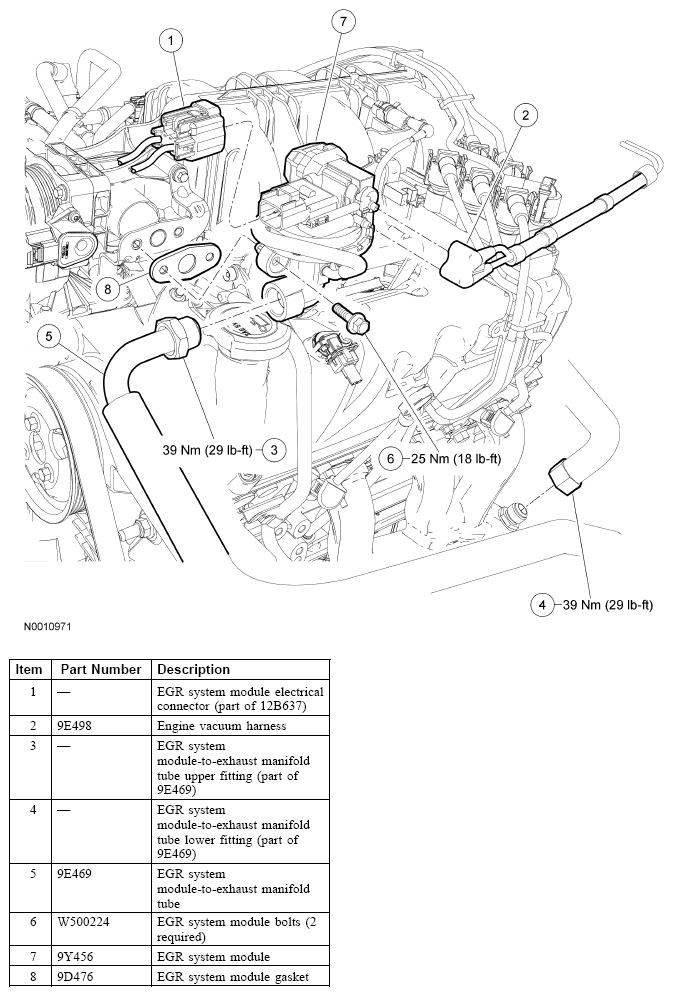

Fig 1: Identifying Exhaust Gas Recirculation (EGR) System Module And Tube Components

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure in this article.
