Compressor to Condenser Discharge Line: Notes

MATERIAL SPECIFICATIONS

Item	Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D	WSH-M1C231-B

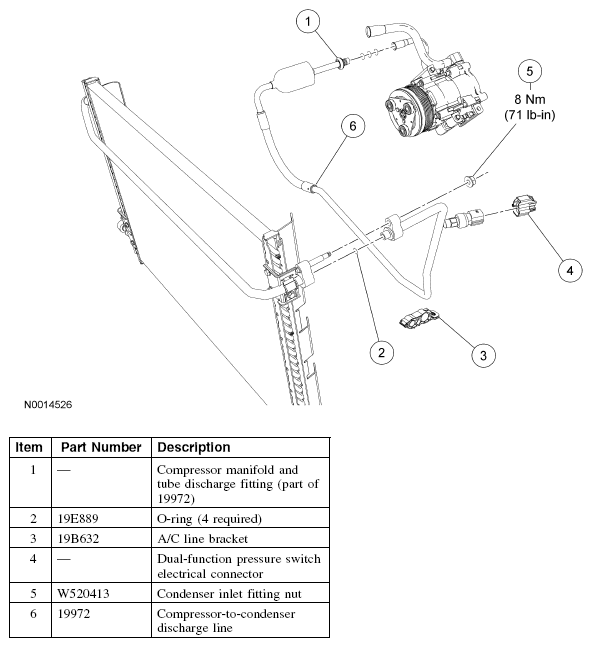

Fig 1: Compressor To Condenser Discharge Line - With Torque Specifications
