Steering Gear: Notes

SPECIAL TOOL

Tie Rod End Remover
211-001 (TOOL-3290-D)

MATERIAL SPECIFICATION

Item	Specification
MERCON® Multi-Purpose ATF Transmission Fluid XT-2-QDX	MERCON®

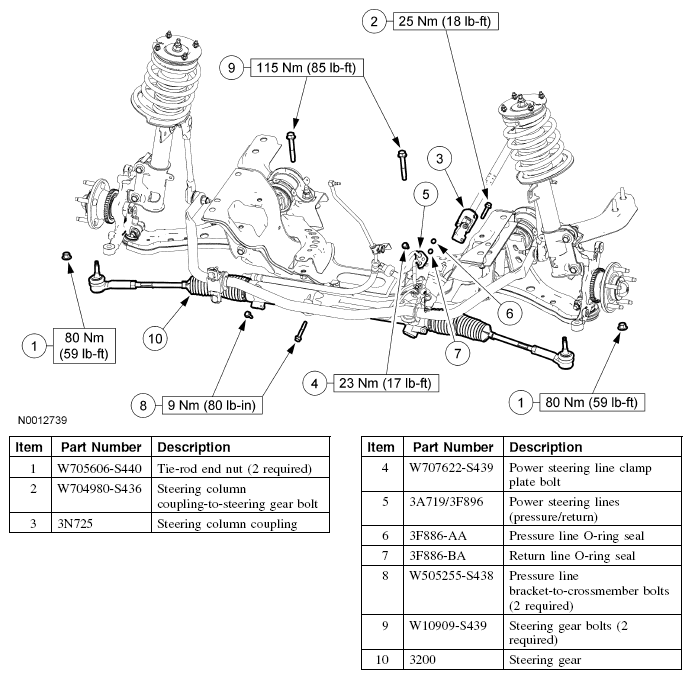

Fig 1: Steering Gear Replacement Components - With Torque Specifications
