Engine Ignition Components - Exploded View

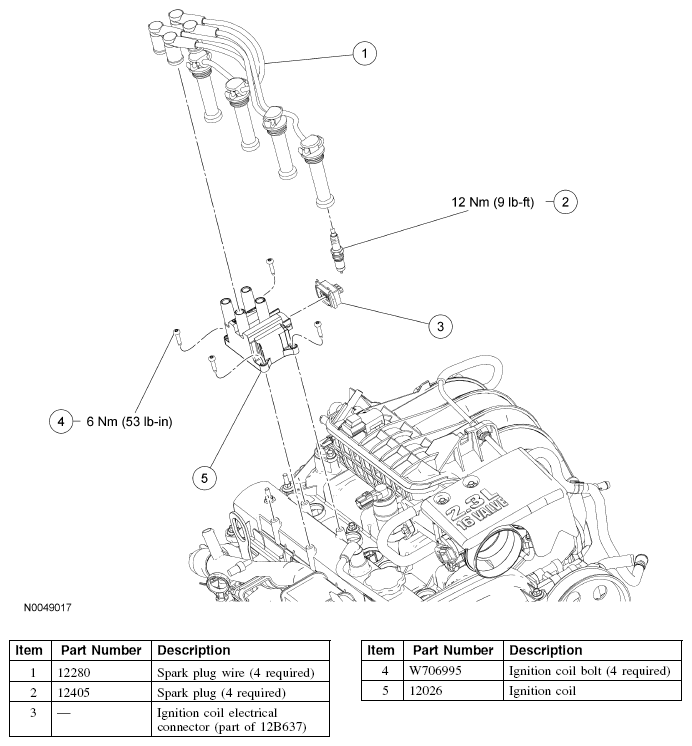

Fig 1: Engine Ignition Components - Exploded View With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure.
