Multifunction Switch, Lamp Portion: Schematic

Fig 1: Schematic Diagram - Multifunction Switch, Lamp Portion
G04611092Courtesy of FORD MOTOR CO.

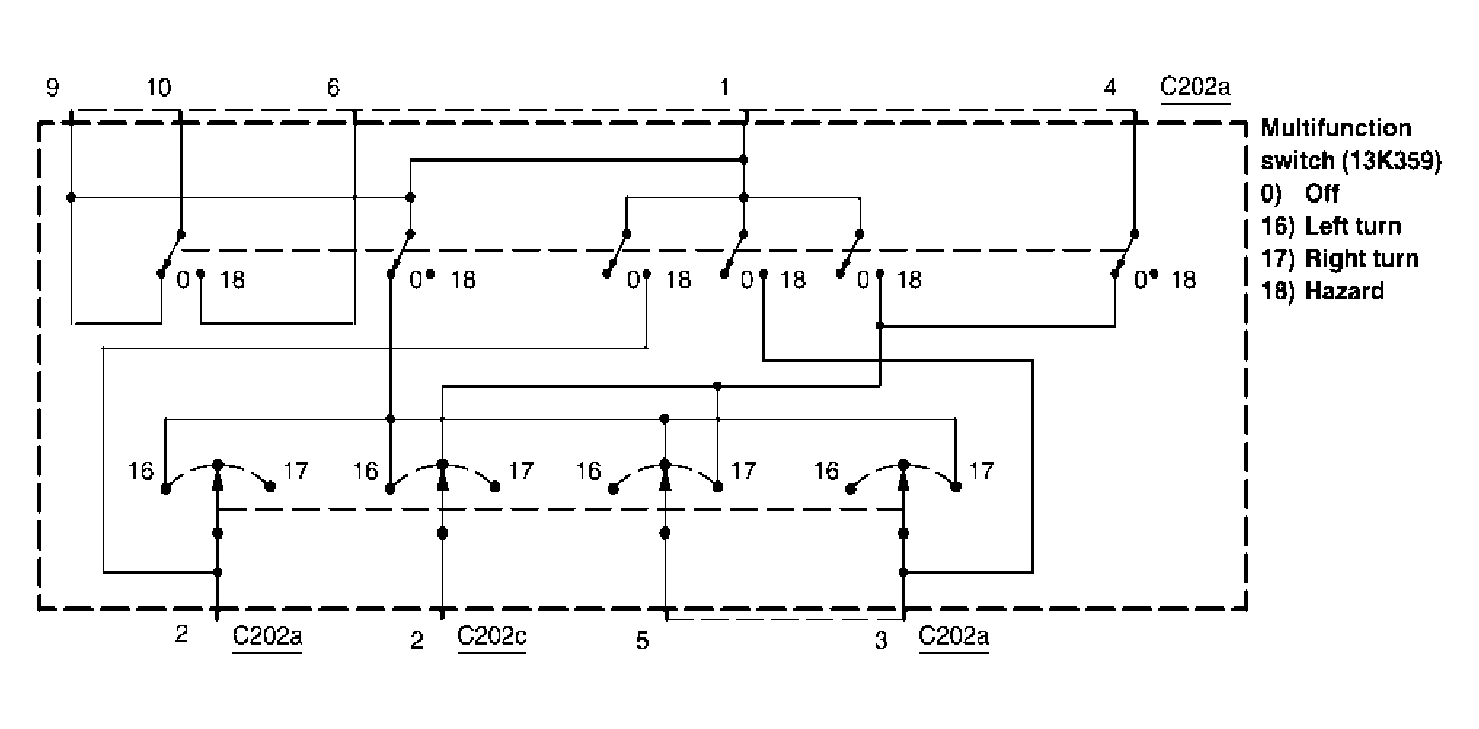

Fig 1: Schematic Diagram - Multifunction Switch, Lamp Portion
G04611094Courtesy of FORD MOTOR CO.
