Seat Backrest - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

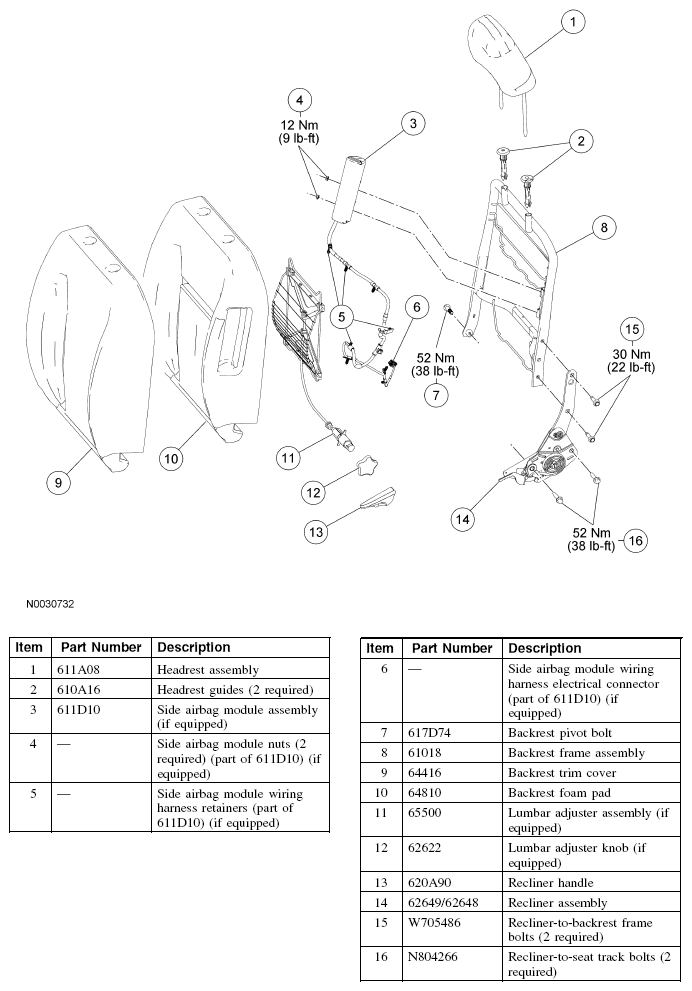

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications
G04711571Courtesy of FORD MOTOR CO.
