Windshield Glass: Notes

SPECIAL TOOL(S) DESCRIPTION

Courtesy of FORD MOTOR CO.	Interior Auto Glass Cut-Out Knife Kit 164-R2450 or equivalent
Courtesy of FORD MOTOR CO.	Pneumatic Knife with Offset Blade 107-R1511 or equivalent
Courtesy of FORD MOTOR CO.	The Pumper 164-R2459 or equivalent

MATERIAL SPECIFICATION

Item	Specification
DOW AUTOMOTIVE 2-HOUR CURE
Dow Urethane Adhesive Betaseal® Express	-
Dow Urethane One Step Glass Primer Betaprime® 5500 / 5500A / 5500SA	-
SIKA 2-HOUR CURE
Sika Urethane Adhesive Sika Tack ASAP	-
Sika Urethane Metal and Glass Primer Sika 206 G+P	-

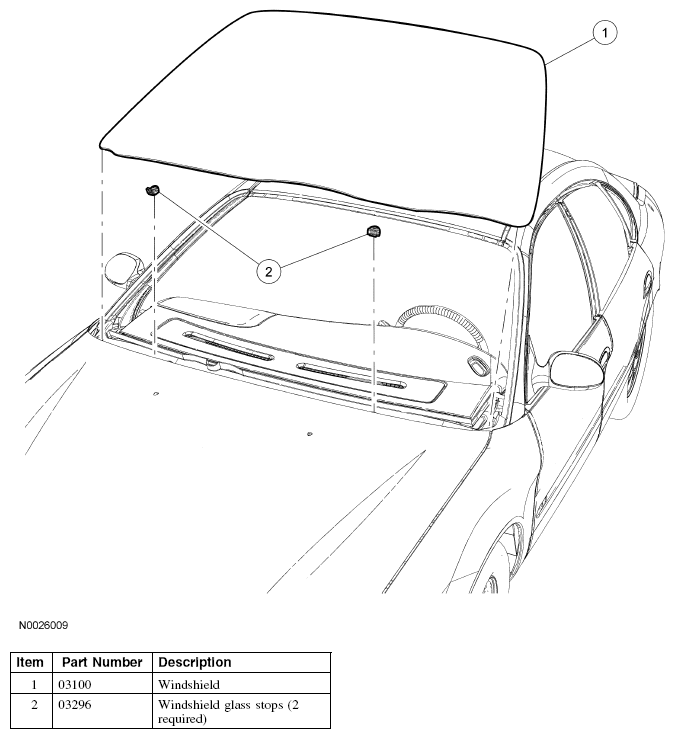

Fig 1: Identifying Windshield Glass Components

Courtesy of FORD MOTOR CO.
