Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07848070

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07848071

Courtesy of FORD MOTOR CO.

Fig 3: Oil Pressure Switch Connector End View (C103)

G07848072

Courtesy of FORD MOTOR CO.

Fig 4: Knock Sensor Connector End View (C108)

G07848073

Courtesy of FORD MOTOR CO.

Fig 5: Inline Connector End View (C110)

G07848074

Courtesy of FORD MOTOR CO.

Fig 6: Speed Control Servo Connector End View (C122)

G07848075

Courtesy of FORD MOTOR CO.

Fig 7: EVAP Canister Purge Valve Connector End View (C123)

G07848076

Courtesy of FORD MOTOR CO.

Fig 8: Brake Fluid Level Switch Connector End View (C124)

G07848077

Courtesy of FORD MOTOR CO.

Fig 9: Windshield Wiper Motor Connector End View (C125)

G07848078

Courtesy of FORD MOTOR CO.

Fig 10: Anti-Theft Hood Switch Connector End View (C127)

G07848079

Courtesy of FORD MOTOR CO.

Fig 11: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07848080

Courtesy of FORD MOTOR CO.

Fig 12: Horn Connector End View (C131)

G07848081

Courtesy of FORD MOTOR CO.

Fig 13: Inline Connector End View (C133)

G07848082

Courtesy of FORD MOTOR CO.

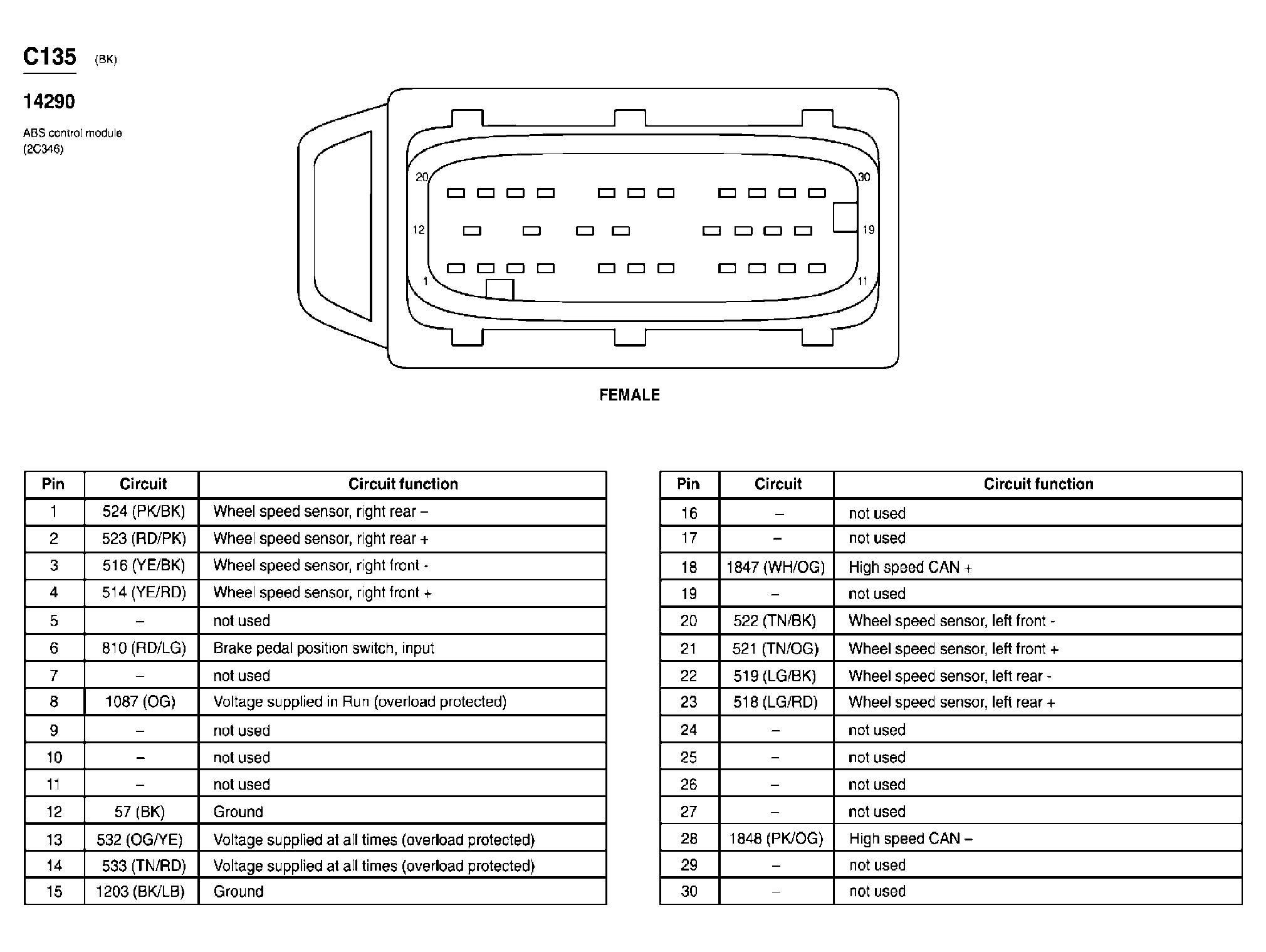

Fig 14: ABS Control Module Connector End View (C135)

G04611114

Courtesy of FORD MOTOR CO.

Fig 15: Windshield Washer Pump Motor Connector End View (C137)

G07848083

Courtesy of FORD MOTOR CO.

Fig 16: Inline Connector End View (C139)

G07848084

Courtesy of FORD MOTOR CO.

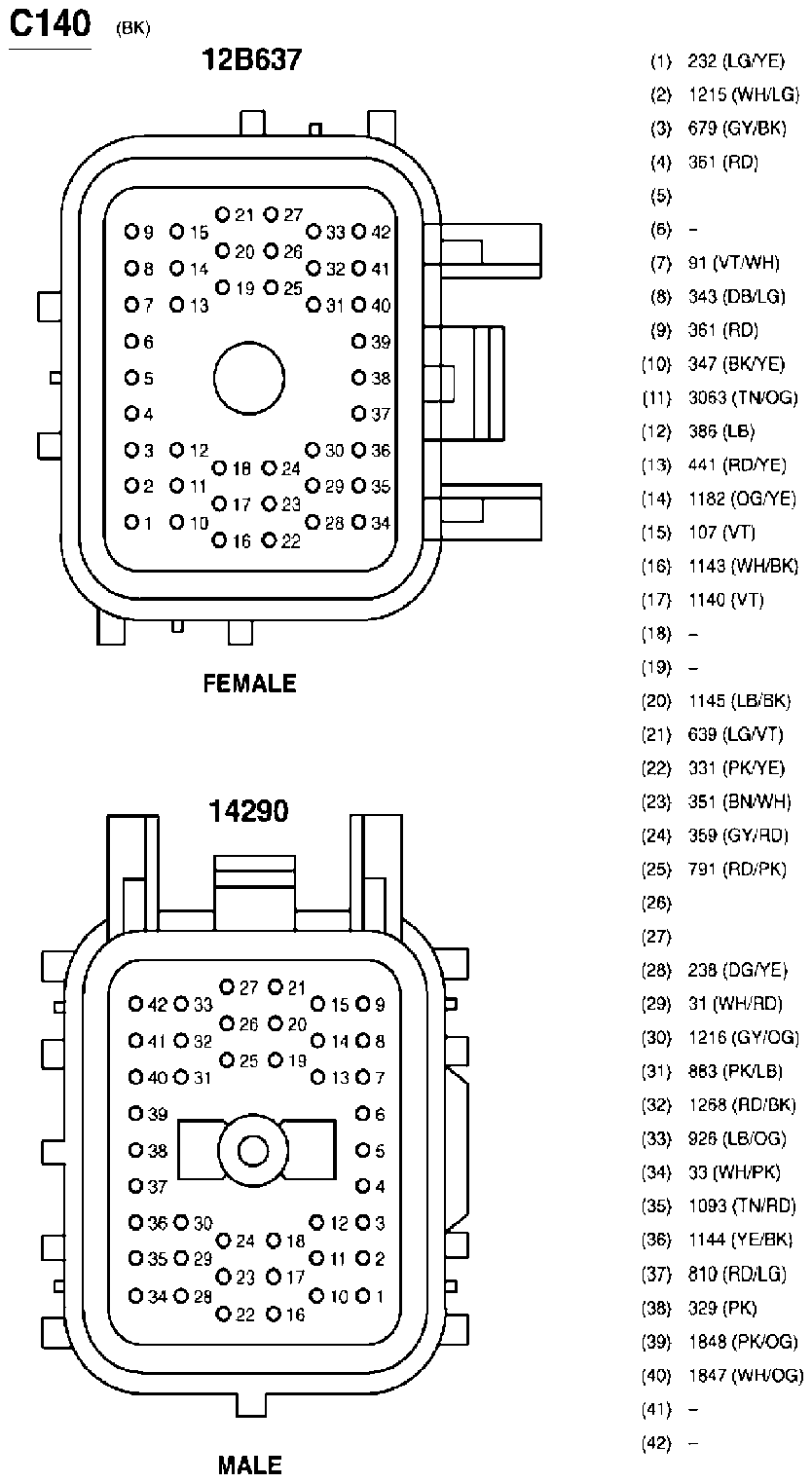

Fig 17: Inline Connector End View (C140)

G07848085

Courtesy of FORD MOTOR CO.

Fig 18: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07848086

Courtesy of FORD MOTOR CO.

Fig 19: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07848087

Courtesy of FORD MOTOR CO.

Fig 20: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07848088

Courtesy of FORD MOTOR CO.

Fig 21: Wheel Speed Sensor, Left Front Connector End View (C150)

G07848089

Courtesy of FORD MOTOR CO.

Fig 22: Wheel Speed Sensor, Right Front Connector End View (C160)

G07848090

Courtesy of FORD MOTOR CO.

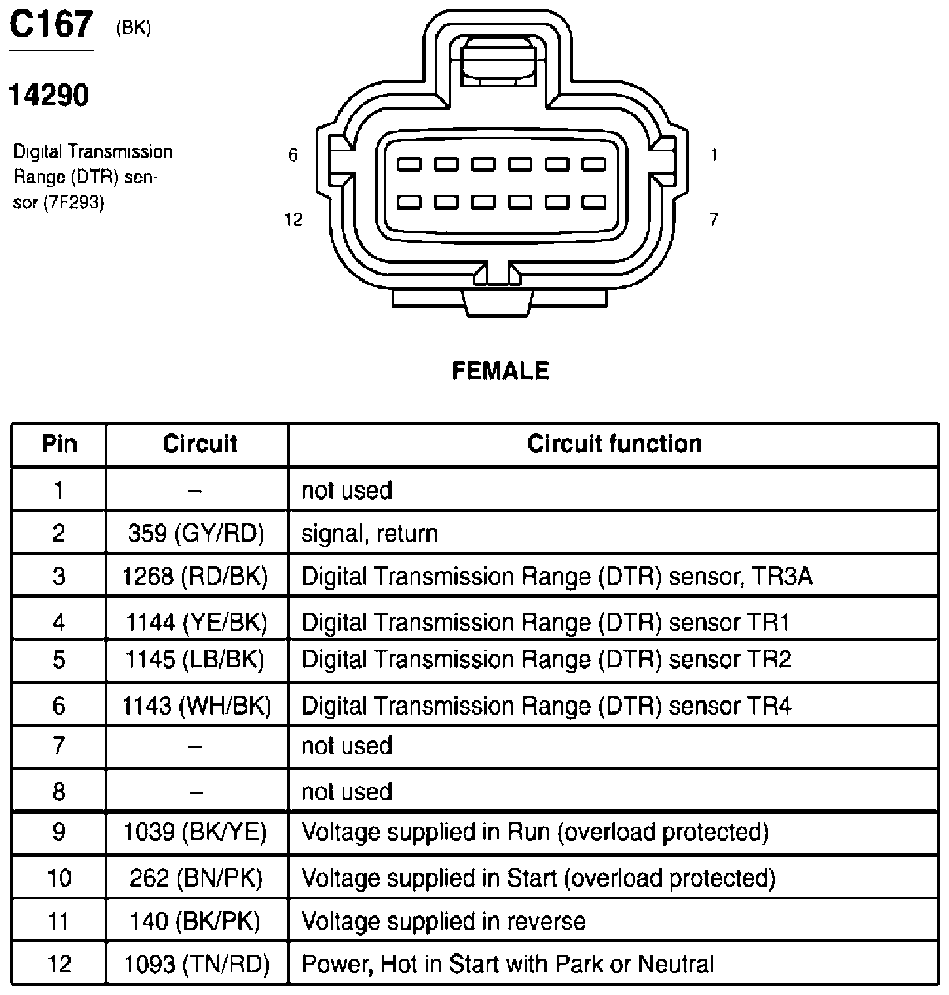

Fig 23: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07848091

Courtesy of FORD MOTOR CO.

Fig 24: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07848092

Courtesy of FORD MOTOR CO.

Fig 25: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07848093

Courtesy of FORD MOTOR CO.

Fig 26: Ignition Transformer Capacitor Connector End View (C174)

G07848094

Courtesy of FORD MOTOR CO.

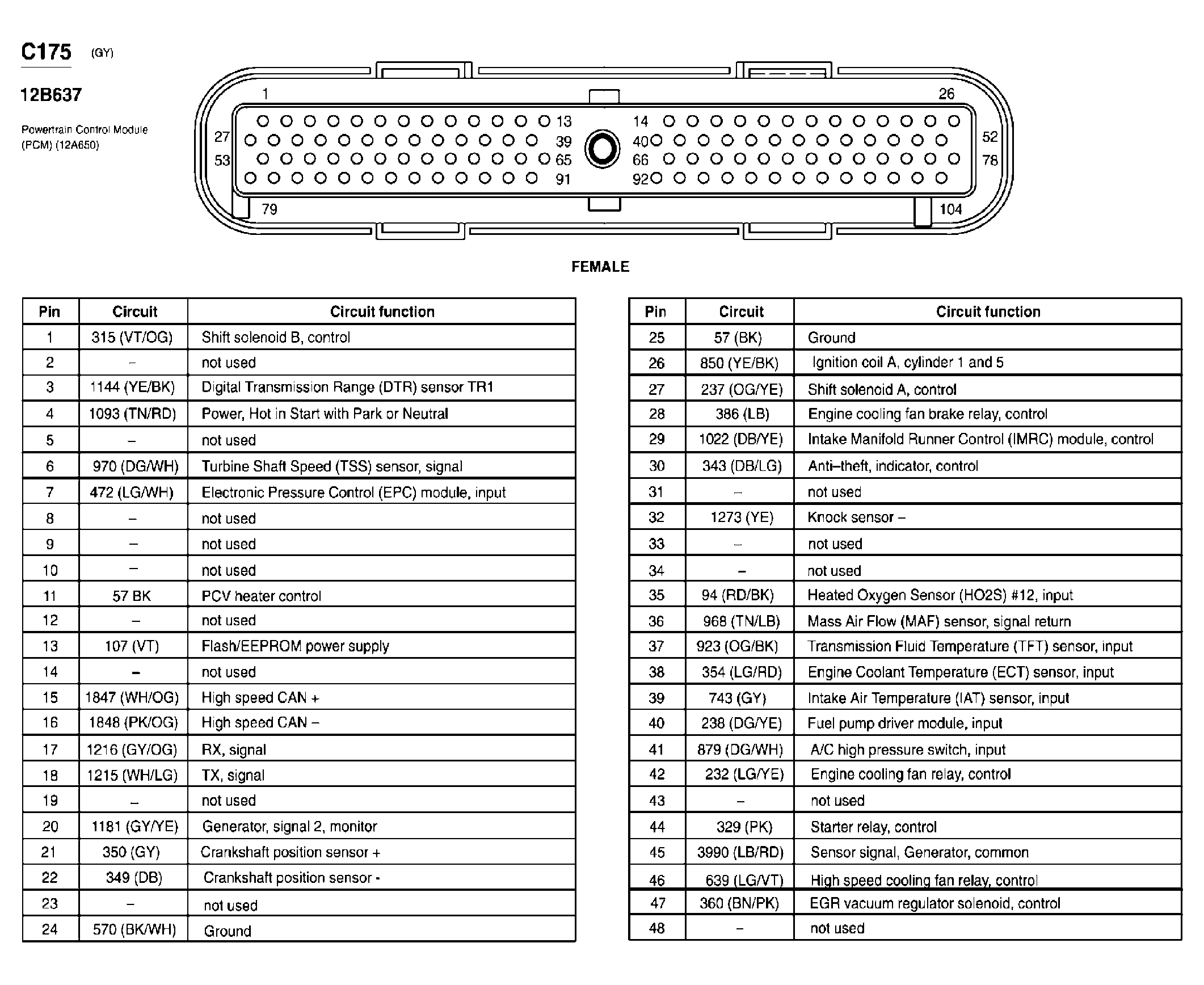

Fig 27: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G04611119

Courtesy of FORD MOTOR CO.

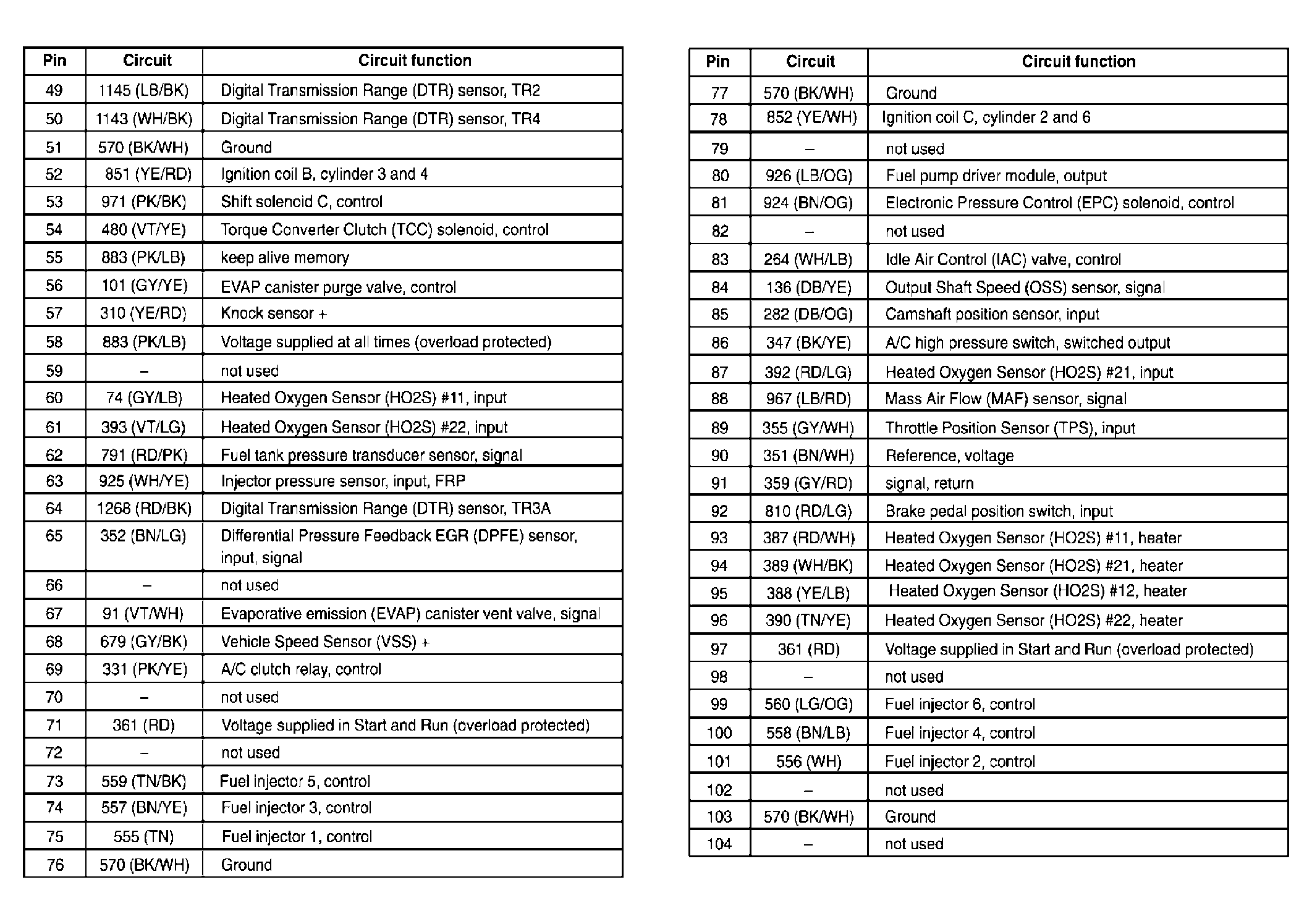

Fig 28: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G04611120

Courtesy of FORD MOTOR CO.

Fig 29: Forward Crash Sensor Connector End View (C177)

G07848095

Courtesy of FORD MOTOR CO.

Fig 30: Camshaft Position Sensor Connector End View (C180)

G07848096

Courtesy of FORD MOTOR CO.

Fig 31: Fuel Injector 1 Connector End View (C181)

G07848097

Courtesy of FORD MOTOR CO.

Fig 32: Fuel Injector 2 Connector End View (C182)

G07848098

Courtesy of FORD MOTOR CO.

Fig 33: Fuel Injector 3 Connector End View (C183)

G07848099

Courtesy of FORD MOTOR CO.

Fig 34: Fuel Injector 4 Connector End View (C184)

G07848100

Courtesy of FORD MOTOR CO.

Fig 35: Fuel Injector 5 Connector End View (C185)

G07848101

Courtesy of FORD MOTOR CO.

Fig 36: Fuel Injector 6 Connector End View (C186)

G07848102

Courtesy of FORD MOTOR CO.

Fig 37: Throttle Position Sensor (TPS) Connector End View (C189)

G07848103

Courtesy of FORD MOTOR CO.

Fig 38: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G07848104

Courtesy of FORD MOTOR CO.

Fig 39: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07848105

Courtesy of FORD MOTOR CO.

Fig 40: Starter Motor Connector End View (C197a)

G07848106

Courtesy of FORD MOTOR CO.

Fig 41: Starter Motor Connector End View (C197b)

G07848107

Courtesy of FORD MOTOR CO.

Fig 42: Ambient Air Temperature Sensor Connector End View (C198)

G07848108

Courtesy of FORD MOTOR CO.

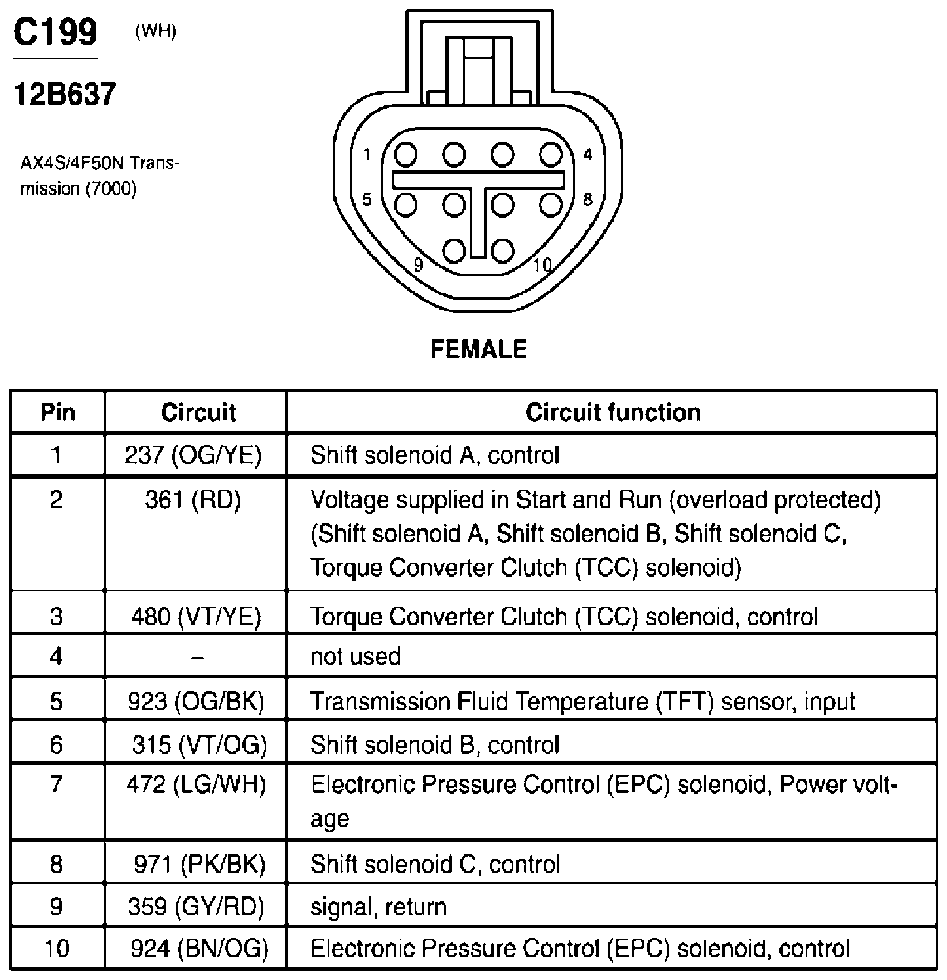

Fig 43: AX4S/4F50N Transmission Connector End View (C199)

G07848109

Courtesy of FORD MOTOR CO.

Fig 44: Multifunction Switch Connector End View (C202a)

G07848110

Courtesy of FORD MOTOR CO.

Fig 45: Multifunction Switch Connector End View (C202b)

G07848111

Courtesy of FORD MOTOR CO.

Fig 46: Multifunction Switch Connector End View (C202c)

G07848112

Courtesy of FORD MOTOR CO.

Fig 47: Main Light Switch Connector End View (C205a)

G07848113

Courtesy of FORD MOTOR CO.

Fig 48: Main Light Switch Connector End View (C205b)

G07848114

Courtesy of FORD MOTOR CO.

Fig 49: Luggage Compartment Lid Release Switch Connector End View (C207)

G07848115

Courtesy of FORD MOTOR CO.

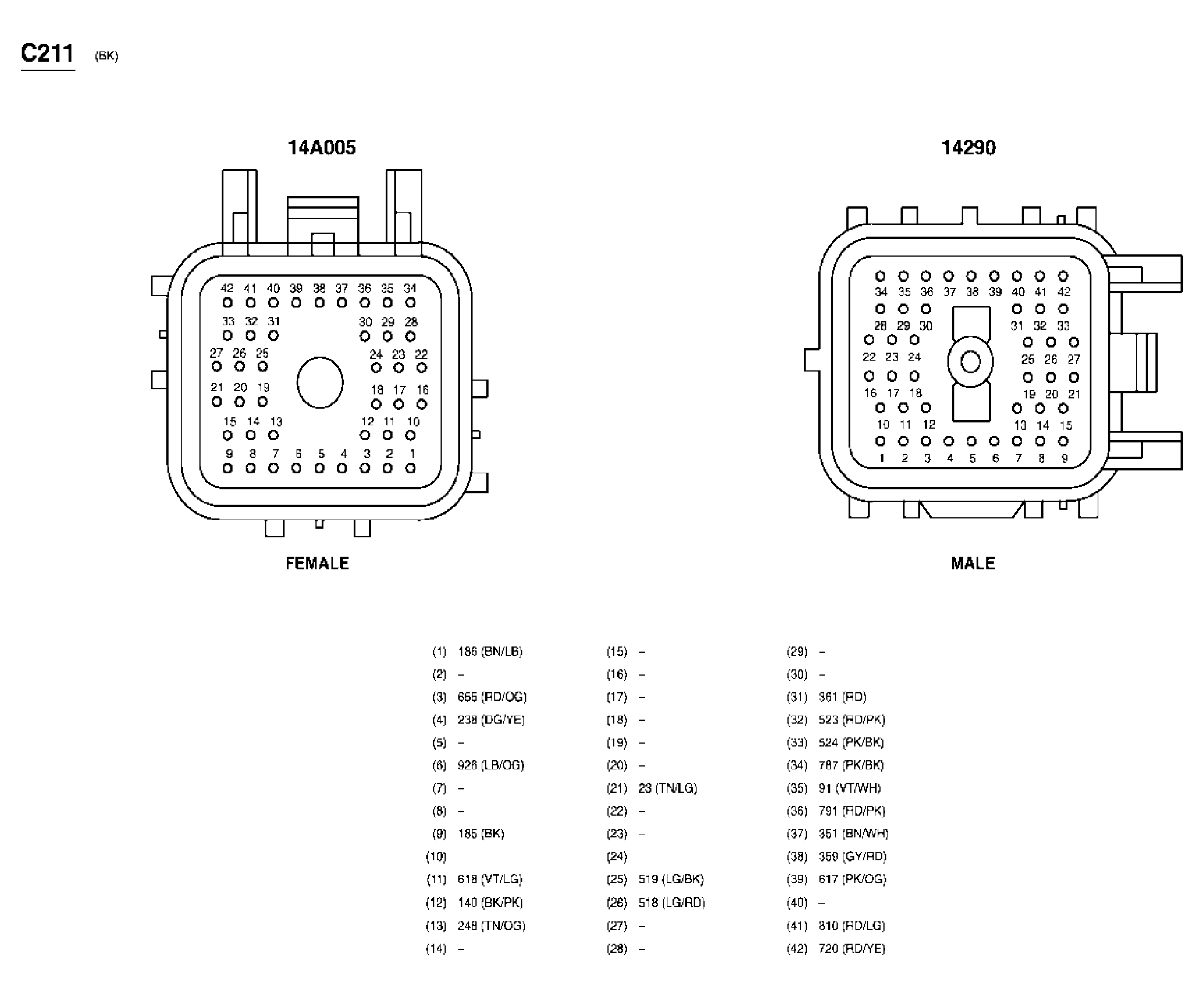

Fig 50: Inline Connector End View (C211)

G04611127

Courtesy of FORD MOTOR CO.

Fig 51: Inline Connector End View (C212)

G07848116

Courtesy of FORD MOTOR CO.

Fig 52: Inline Connector End View (C214)

G07848117

Courtesy of FORD MOTOR CO.

Fig 53: Air Bag Sliding Contact Connector End View (C218a)

G07848118

Courtesy of FORD MOTOR CO.

Fig 54: Air Bag Sliding Contact Connector End View (C218b)

G07848119

Courtesy of FORD MOTOR CO.

Fig 55: Inline Connector End View (C219)

G07848120

Courtesy of FORD MOTOR CO.

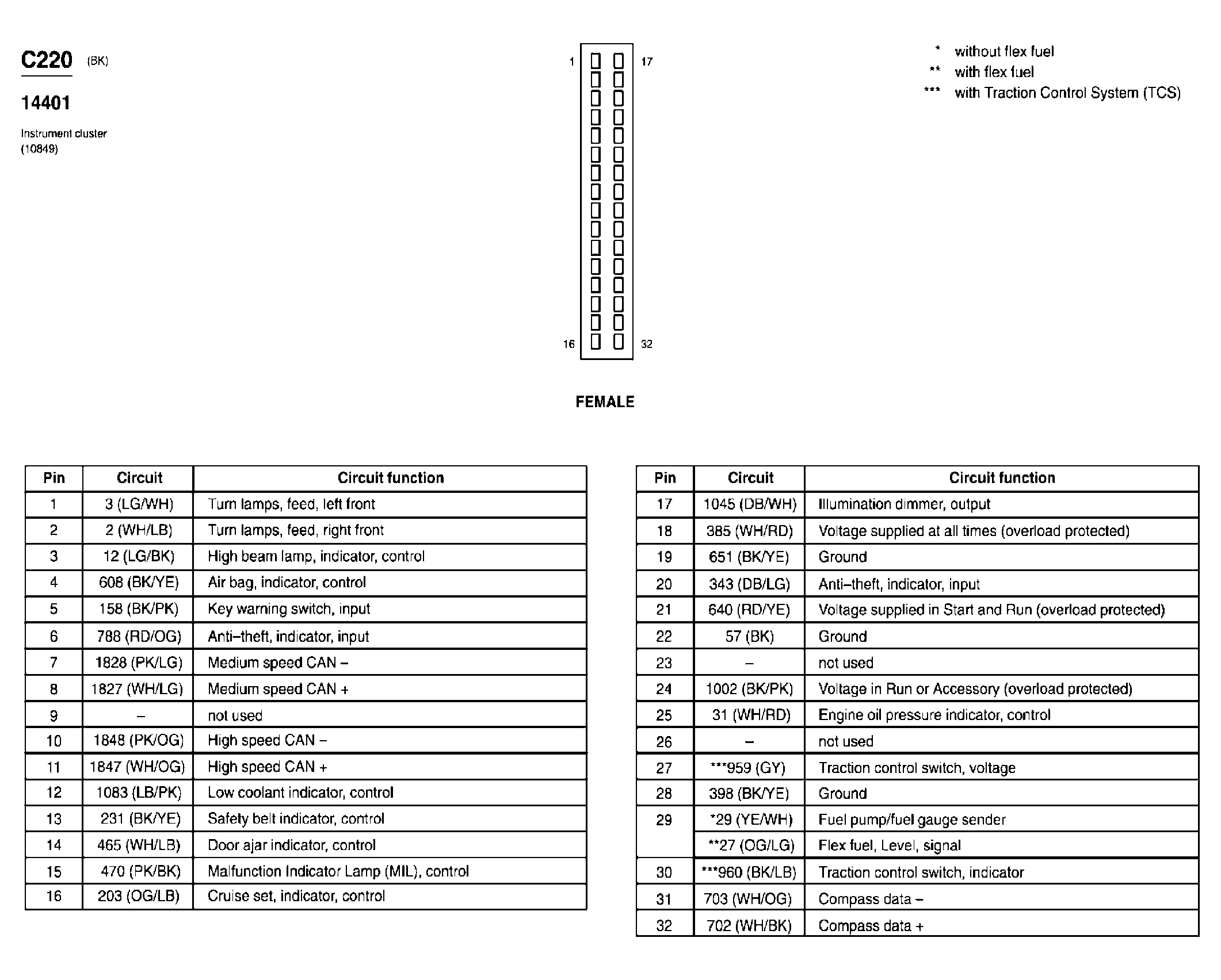

Fig 56: Instrument Cluster Connector End View (C220)

G04611130

Courtesy of FORD MOTOR CO.

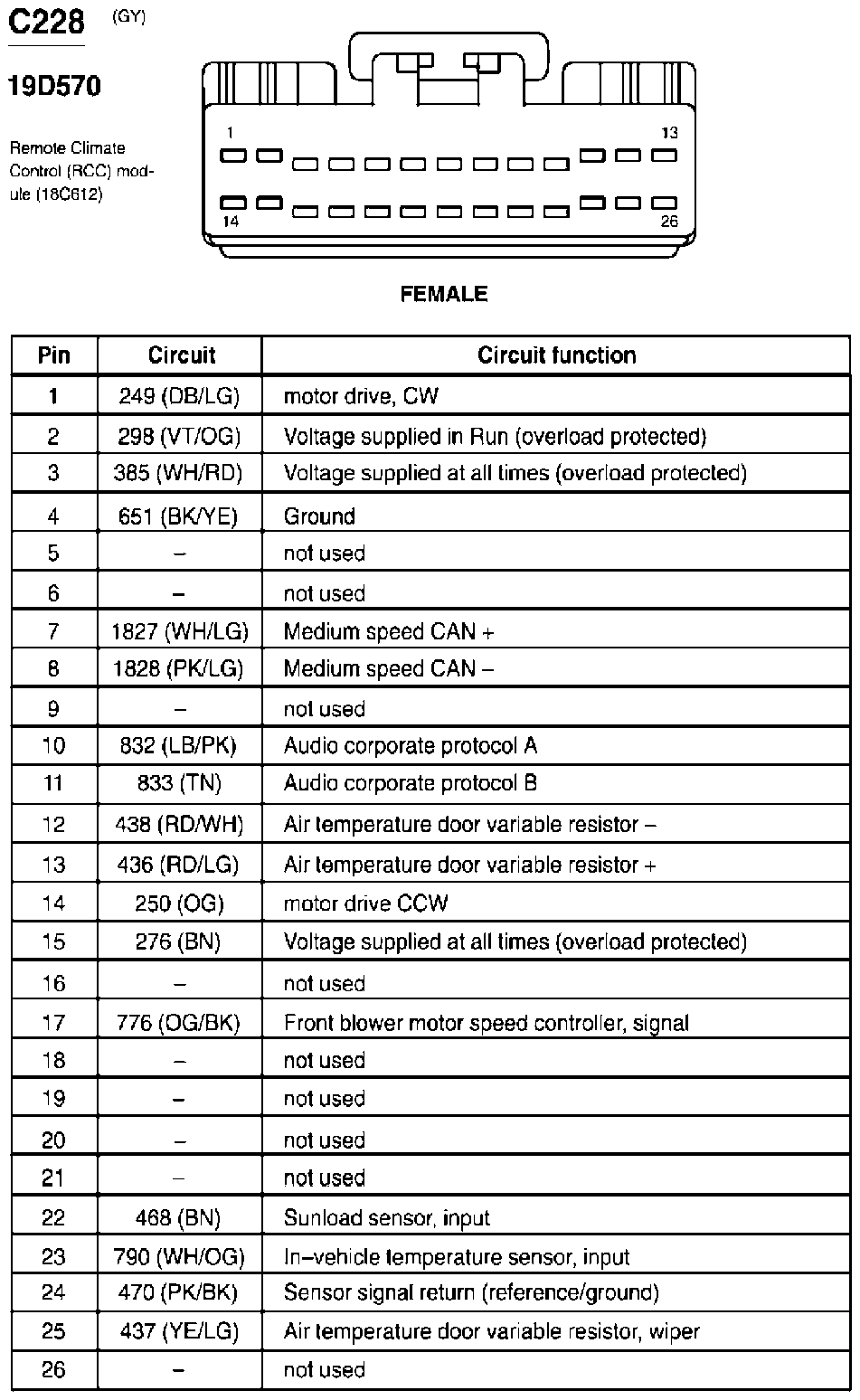

Fig 57: Remote Climate Control (RCC) Module Connector End View (C228)

G07848121

Courtesy of FORD MOTOR CO.

Fig 58: In-Vehicle Temperature Sensor Connector End View (C233)

G07848122

Courtesy of FORD MOTOR CO.

Fig 59: CD Changer Connector End View (C243)

G07848123

Courtesy of FORD MOTOR CO.

Fig 60: Data Link Connector (DLC) Connector End View (C251)

G07848124

Courtesy of FORD MOTOR CO.

Fig 61: Passive Anti Theft Transceiver Module Connector End View (C252)

G07848125

Courtesy of FORD MOTOR CO.

Fig 62: Message Center Switch Connector End View (C253)

G07848126

Courtesy of FORD MOTOR CO.

Fig 63: Glove Box Lamp Connector End View (C254)

G07848127

Courtesy of FORD MOTOR CO.

Fig 64: Passenger Air Bag Module Connector End View (C256)

G07848128

Courtesy of FORD MOTOR CO.

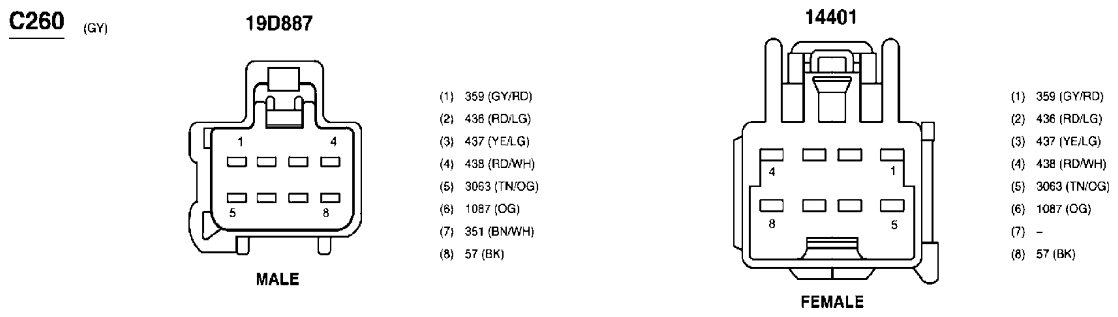

Fig 65: Inline Connector End View (C260)

G07848129

Courtesy of FORD MOTOR CO.

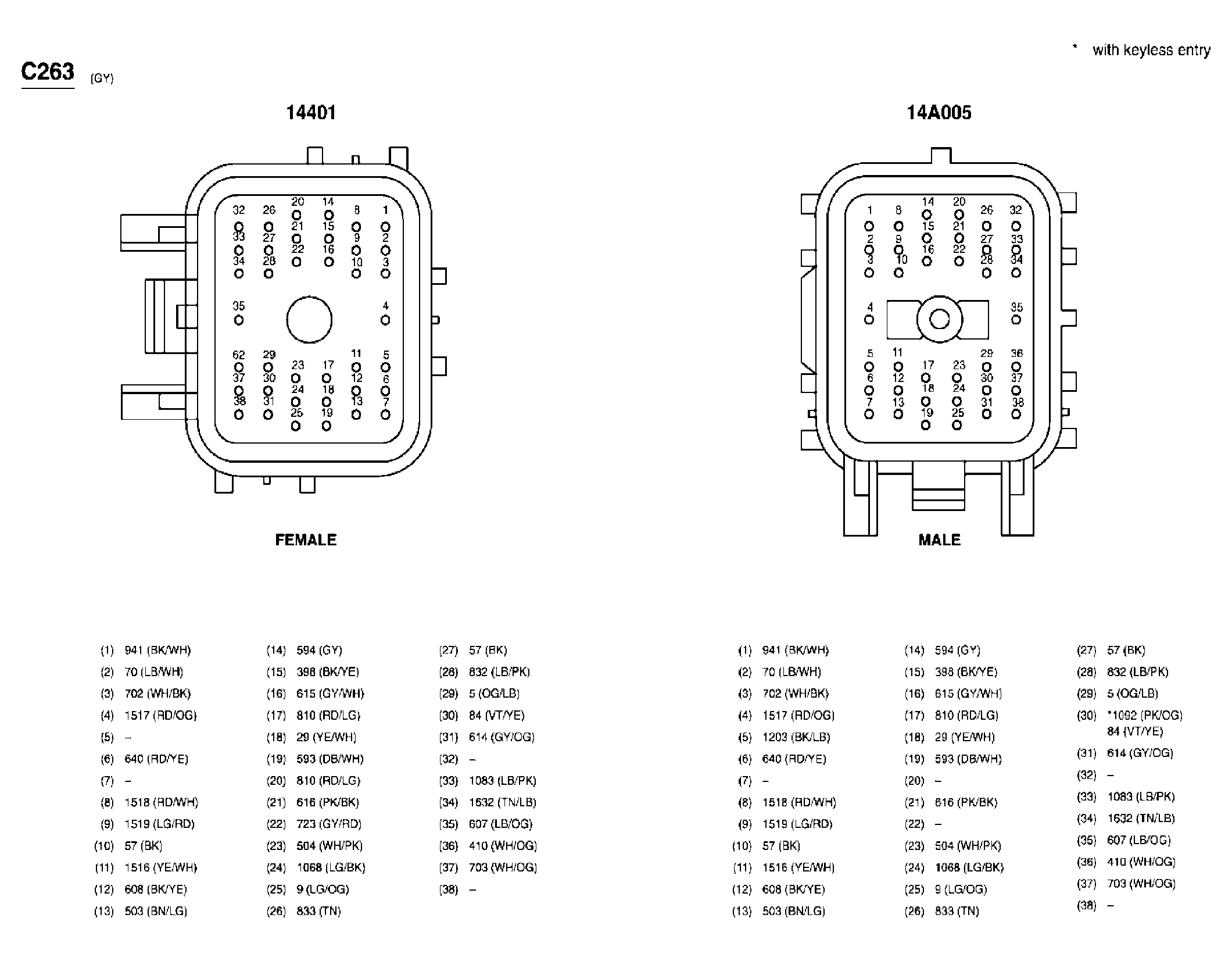

Fig 66: Inline Connector End View (C263)

G04611134

Courtesy of FORD MOTOR CO.

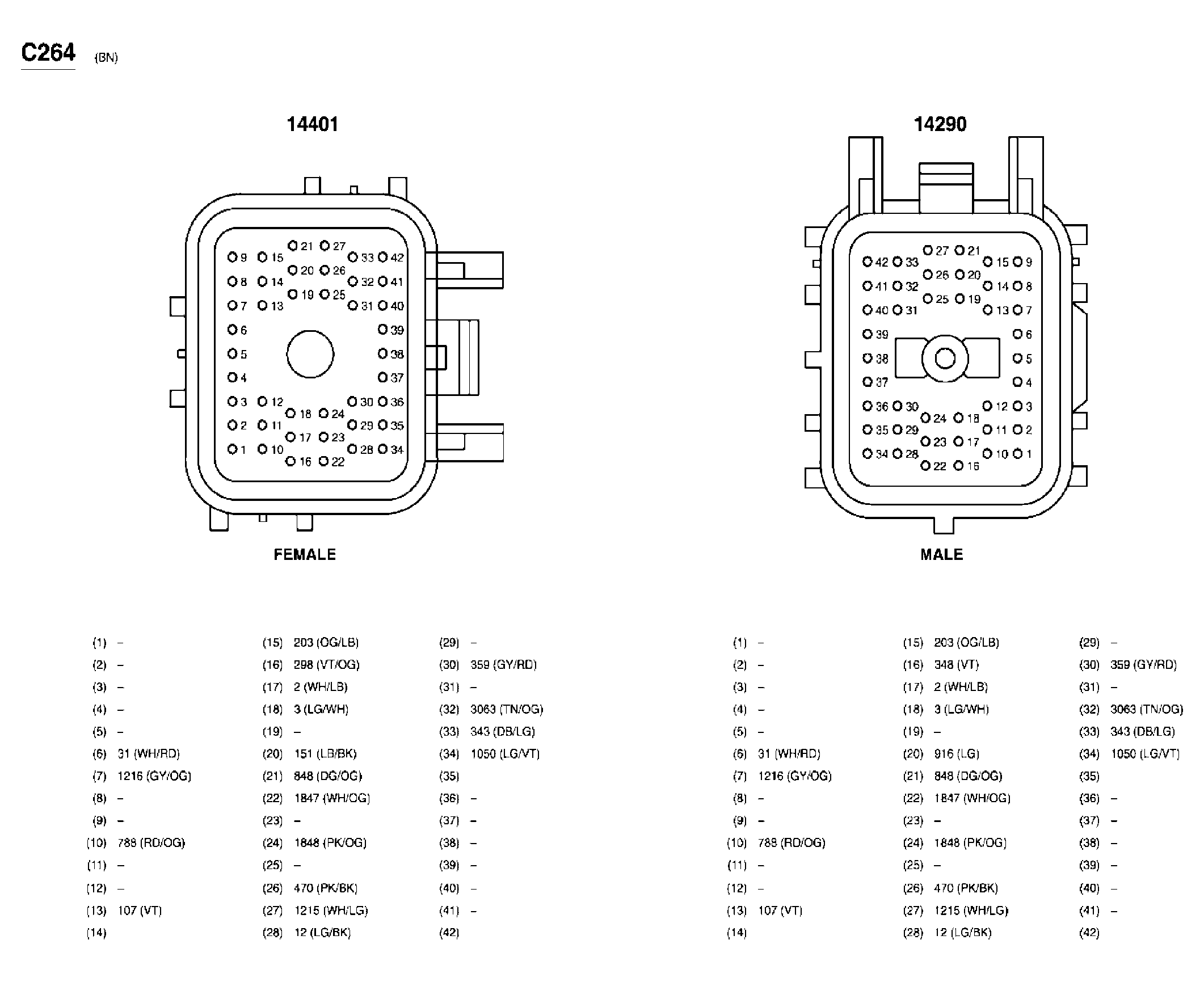

Fig 67: Inline Connector End View (C264)

G04611135

Courtesy of FORD MOTOR CO.

Fig 68: Inline Connector End View (C265)

G07848130

Courtesy of FORD MOTOR CO.

Fig 69: Front Blower Motor Speed Controller Connector End View (C271a)

G07848131

Courtesy of FORD MOTOR CO.

Fig 70: Deactivator Switch Connector End View (C277)

G07848132

Courtesy of FORD MOTOR CO.

Fig 71: Brake Pedal Position Switch Connector End View (C278)

G07848133

Courtesy of FORD MOTOR CO.

Fig 72: Traction Control Switch Connector End View (C280)

G07848134

Courtesy of FORD MOTOR CO.

Fig 73: Autolamp/Sunload Sensor Connector End View (C287)

G07848135

Courtesy of FORD MOTOR CO.

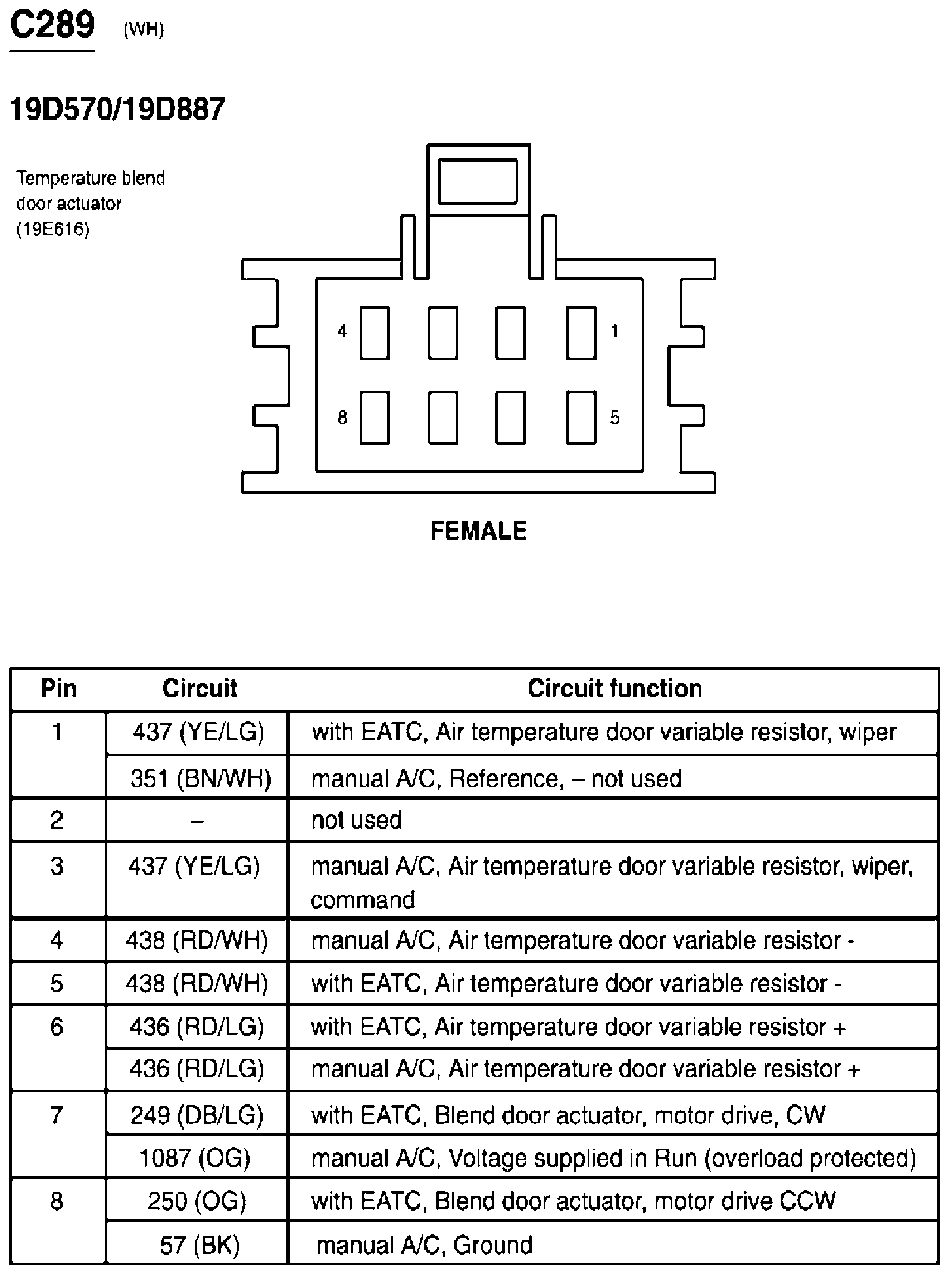

Fig 74: Temperature Blend Door Actuator Connector End View (C289)

G07848136

Courtesy of FORD MOTOR CO.

Fig 75: Inline Connector End View (C291)

G07848137

Courtesy of FORD MOTOR CO.

Fig 76: Front Blower Motor Resistor Assembly Connector End View (C293)

G07848138

Courtesy of FORD MOTOR CO.

Fig 77: Function Selector Switch Assembly Connector End View (C294a)

G07848139

Courtesy of FORD MOTOR CO.

Fig 78: Function Selector Switch Assembly Connector End View (C2494b)

G07848140

Courtesy of FORD MOTOR CO.

Fig 79: Function Selector Switch Assembly Connector End View (C294c)

G07848141

Courtesy of FORD MOTOR CO.

Fig 80: Side Impact Sensor, Right Connector End View (C304)

G07848142

Courtesy of FORD MOTOR CO.

Fig 81: Side Impact Sensor, Left Connector End View (C305)

G07848143

Courtesy of FORD MOTOR CO.

Fig 82: Parking Brake Switch Connector End View (C306)

G07848144

Courtesy of FORD MOTOR CO.

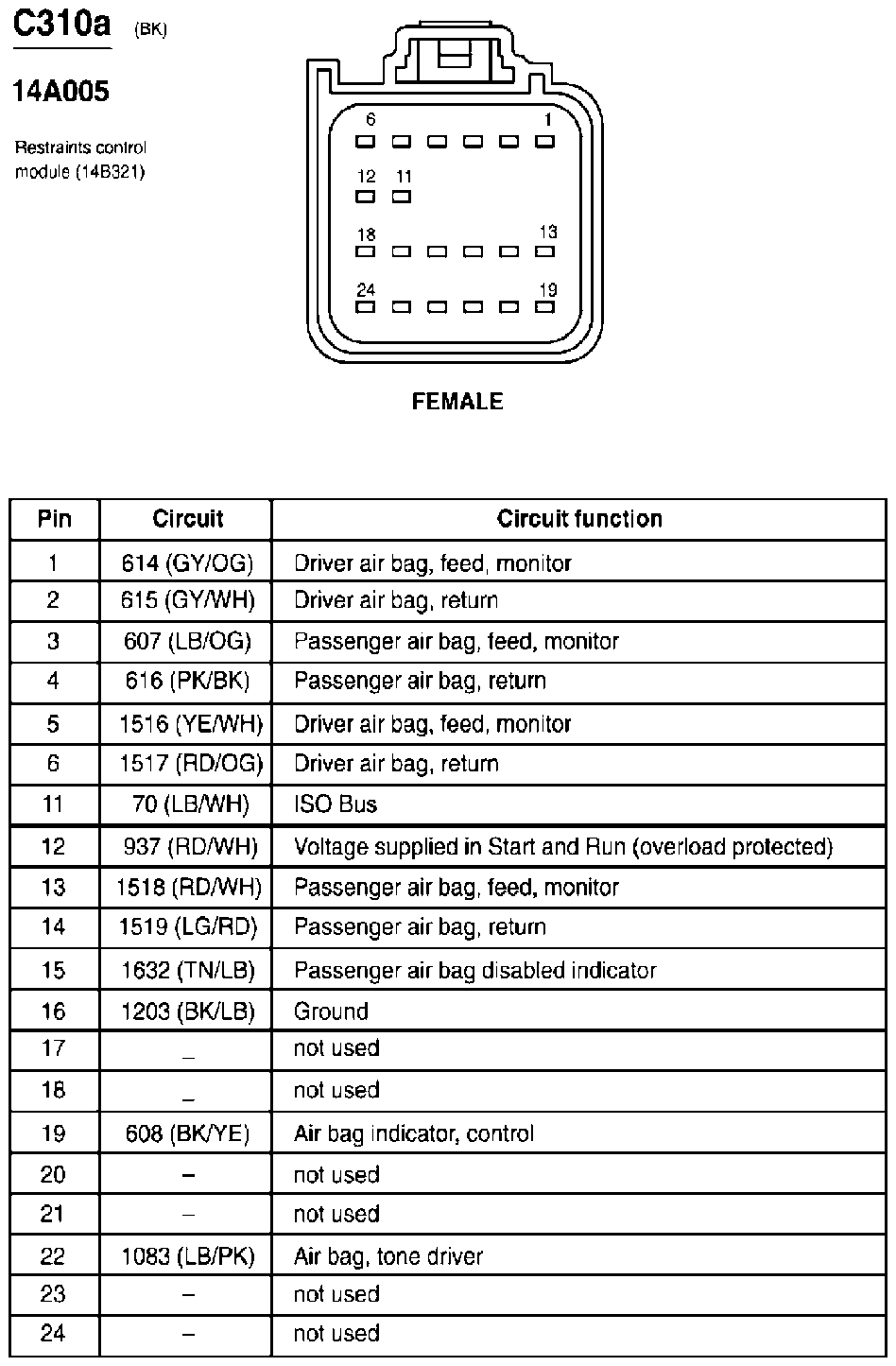

Fig 83: Restraints Control Module Connector End View (C310a)

G07848145

Courtesy of FORD MOTOR CO.

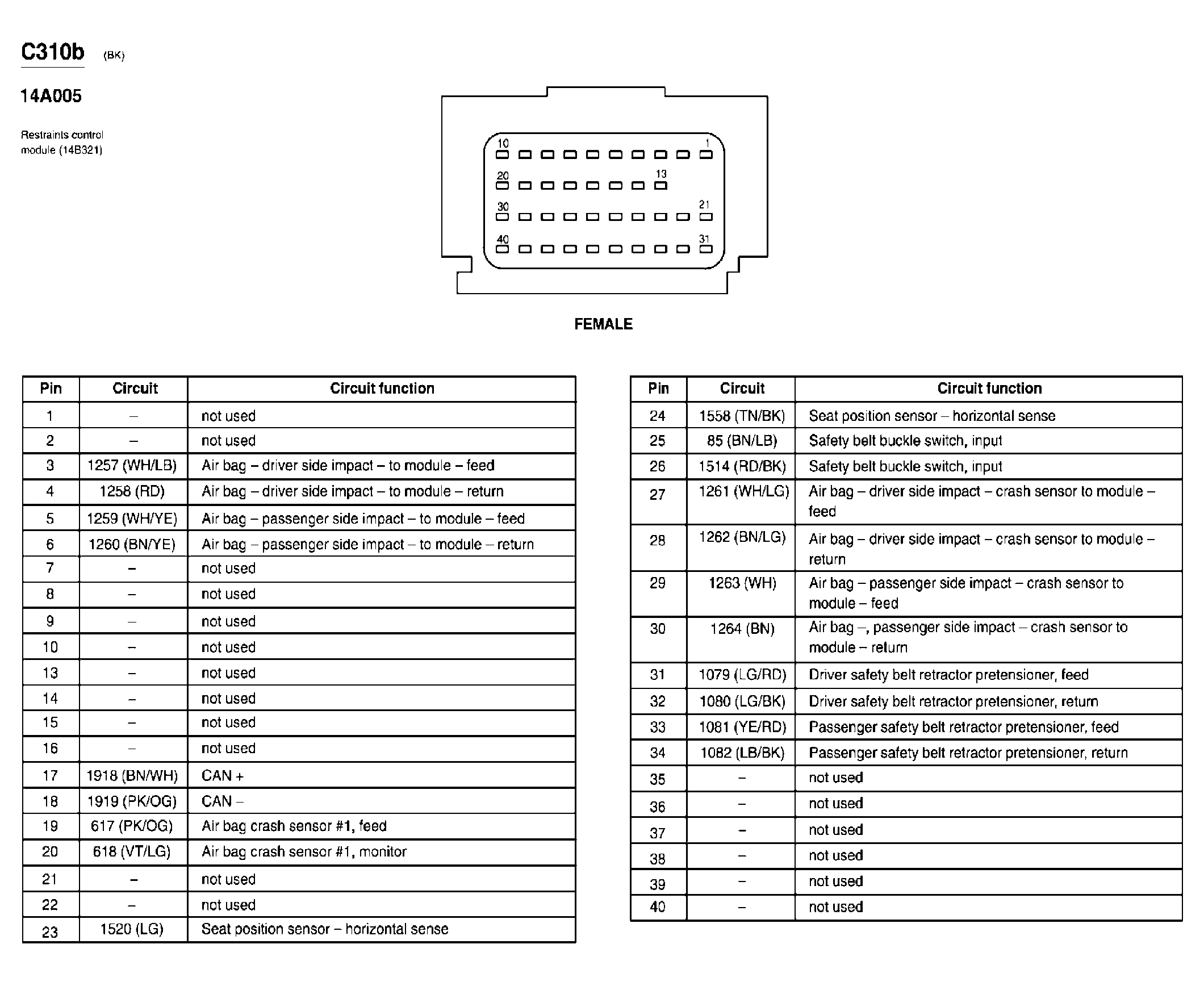

Fig 84: Restraints Control Module Connector End View (C310b)

G04611141

Courtesy of FORD MOTOR CO.

Fig 85: Inline Connector End View (C313)

G07848146

Courtesy of FORD MOTOR CO.

Fig 86: Inline Connector End View (C314)

G07848147

Courtesy of FORD MOTOR CO.

Fig 87: Inline Connector End View (C315)

G07848148

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C316)

G07848149

Courtesy of FORD MOTOR CO.

Fig 89: Cigar Lighter, Front Connector End View (C319)

G07848150

Courtesy of FORD MOTOR CO.

Fig 90: Inline Connector End View (C327)

G07848151

Courtesy of FORD MOTOR CO.

Fig 91: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07848152

Courtesy of FORD MOTOR CO.

Fig 92: Power Seat Motor Assembly, Right Connector End View (C332)

G07848153

Courtesy of FORD MOTOR CO.

Fig 93: Side Air Bag Module, Right Connector End View (C337)

G07848154

Courtesy of FORD MOTOR CO.

Fig 94: Seat Track Position Sensor, Left Connector End View (C356)

G07848155

Courtesy of FORD MOTOR CO.

Fig 95: Power Seat Motor Assembly, Left Connector End View (C357)

G07848156

Courtesy of FORD MOTOR CO.

Fig 96: Seat Track Position Sensor, Left Connector End View (C358)

G07848157

Courtesy of FORD MOTOR CO.

Fig 97: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07848158

Courtesy of FORD MOTOR CO.

Fig 98: Side Air Bag Module, Left Connector End View (C367)

G07848159

Courtesy of FORD MOTOR CO.

Fig 99: Ashtray Illumination Lamp Connector End View (C370)

G07848160

Courtesy of FORD MOTOR CO.

Fig 100: Power Point Connector End View (C380)

G07848161

Courtesy of FORD MOTOR CO.

Fig 101: Safety Belt Assembly, Left Connector End View (C381)

G07848162

Courtesy of FORD MOTOR CO.

Fig 102: Rear Control Unit (RCU) Connector End View (C388a)

G07848163

Courtesy of FORD MOTOR CO.

Fig 103: Rear Control Unit (RCU) Connector End View (C388b)

G07848164

Courtesy of FORD MOTOR CO.

Fig 104: Rear Control Unit (RCU) Connector End View (C388c)

G07848165

Courtesy of FORD MOTOR CO.

Fig 105: Safety Belt Assembly, Right Connector End View (C389)

G07848166

Courtesy of FORD MOTOR CO.

Fig 106: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)

G07848167

Courtesy of FORD MOTOR CO.

Fig 107: Rear Window Defrost Grid Connector End View (C402a)

G07848168

Courtesy of FORD MOTOR CO.

Fig 108: Rear Window Defrost Grid Connector End View (C402b)

G07848169

Courtesy of FORD MOTOR CO.

Fig 109: Inline Connector End View (C411)

G07848170

Courtesy of FORD MOTOR CO.

Fig 110: Park/Stop/Turn Lamp, Left Rear Connector End View (C412)

G07848171

Courtesy of FORD MOTOR CO.

Fig 111: Park/Turn Lamp, Right Rear Connector End View (C415)

G07848172

Courtesy of FORD MOTOR CO.

Fig 112: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07848173

Courtesy of FORD MOTOR CO.

Fig 113: Luggage Compartment Lamp Connector End View (C428)

G07848174

Courtesy of FORD MOTOR CO.

Fig 114: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07848175

Courtesy of FORD MOTOR CO.

Fig 115: Inline Connector End View (C431)

G07848176

Courtesy of FORD MOTOR CO.

Fig 116: Inline Connector End View (C432)

G07848177

Courtesy of FORD MOTOR CO.

Fig 117: Fuel Pump Driver Module Connector End View (C433)

G07848178

Courtesy of FORD MOTOR CO.

Fig 118: Fuel Sender Connector End View (C434)

G07848179

Courtesy of FORD MOTOR CO.

Fig 119: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07848180

Courtesy of FORD MOTOR CO.

Fig 120: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07848181

Courtesy of FORD MOTOR CO.

Fig 121: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07848182

Courtesy of FORD MOTOR CO.

Fig 122: Reversing Lamp, Left Connector End View (C451)

G07848183

Courtesy of FORD MOTOR CO.

Fig 123: License Plate Lamp, Left Connector End View (C452)

G07848184

Courtesy of FORD MOTOR CO.

Fig 124: Reversing Lamp, Right Connector End View (C461)

G07848185

Courtesy of FORD MOTOR CO.

Fig 125: License Plate Lamp, Right Connector End View (C462)

G07848186

Courtesy of FORD MOTOR CO.

Fig 126: High Mounted Stoplamp Connector End View (C475)

G07848187

Courtesy of FORD MOTOR CO.

Fig 127: Anti-Theft Luggage Compartment Switch Connector End View (C483)

G07848188

Courtesy of FORD MOTOR CO.

Fig 128: Speaker, Left Rear Connector End View (C484)

G07848189

Courtesy of FORD MOTOR CO.

Fig 129: Speaker, Right Rear Connector End View (C485)

G07848190

Courtesy of FORD MOTOR CO.

Fig 130: Key Pad Switch Assembly Connector End View (C500)

G07848191

Courtesy of FORD MOTOR CO.

Fig 131: Lock Cylinder Switch, Left Connector End View (C502)

G07848192

Courtesy of FORD MOTOR CO.

Fig 132: Master Window Adjust Switch Connector End View (C504a)

G07848193

Courtesy of FORD MOTOR CO.

Fig 133: Master Window Adjust Switch Connector End View (C504b)

G07848194

Courtesy of FORD MOTOR CO.

Fig 134: Door Lock Switch, Driver Side Connector End View (C505)

G04611156

Courtesy of FORD MOTOR CO.

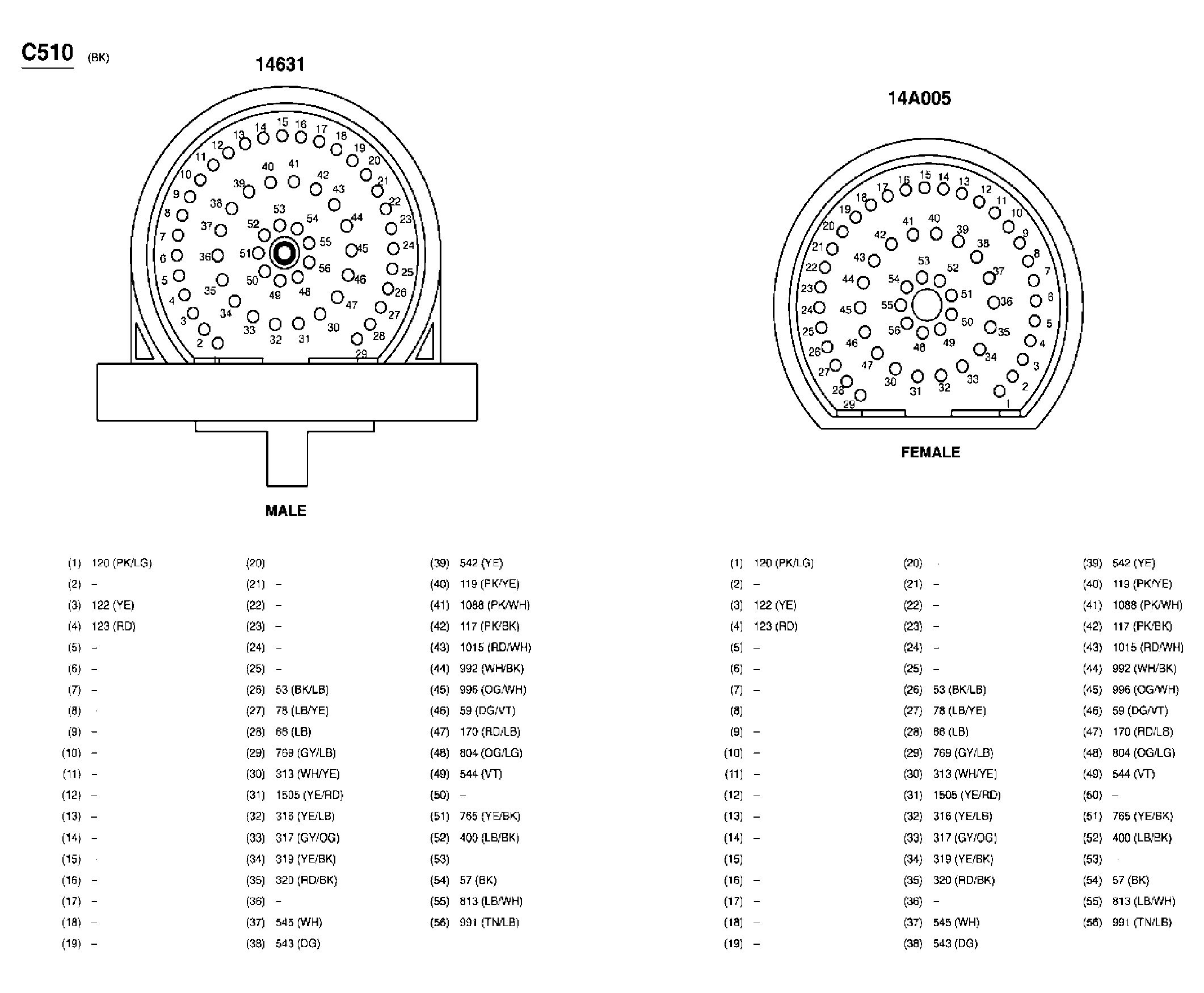

Fig 135: Inline Connector End View (C510)

G04611157

Courtesy of FORD MOTOR CO.

Fig 136: Tweeter, Left Front Connector End View (C513)

G07848195

Courtesy of FORD MOTOR CO.

Fig 137: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G07848196

Courtesy of FORD MOTOR CO.

Fig 138: Speaker, Left Front Connector End View (C523)

G07848197

Courtesy of FORD MOTOR CO.

Fig 139: Power Window Motor, Driver Side Front Connector End View (C524)

G07848198

Courtesy of FORD MOTOR CO.

Fig 140: Door Lock Actuator, Left Front Connector End View (C525)

G07848199

Courtesy of FORD MOTOR CO.

Fig 141: Door Ajar Switch, Left Front Connector End View (C526)

G07848200

Courtesy of FORD MOTOR CO.

Fig 142: Exterior Rear View Mirror Switch Connector End View (C527)

G07848201

Courtesy of FORD MOTOR CO.

Fig 143: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07848202

Courtesy of FORD MOTOR CO.

Fig 144: Door Ajar Switch, Right Rear Connector End View (C602)

G07848203

Courtesy of FORD MOTOR CO.

Fig 145: Door Lock Actuator, Right Front Connector End View (C603)

G07848204

Courtesy of FORD MOTOR CO.

Fig 146: Window Adjust Switch, Passenger Side Connector End View (C604)

G07848205

Courtesy of FORD MOTOR CO.

Fig 147: Door Lock Switch, Passenger Side Connector End View (C605)

G07848206

Courtesy of FORD MOTOR CO.

Fig 148: Power Window Motor, Passenger Side Front Connector End View (C608)

G07848207

Courtesy of FORD MOTOR CO.

Fig 149: Speaker, Right Front Connector End View (C612)

G07848208

Courtesy of FORD MOTOR CO.

Fig 150: Tweeter, Right Front Connector End View (C613)

G07848209

Courtesy of FORD MOTOR CO.

Fig 151: Window Adjust Switch, Left Rear Connector End View (C701)

G07848210

Courtesy of FORD MOTOR CO.

Fig 152: Power Window Motor, Left Rear Connector End View (C703)

G07848211

Courtesy of FORD MOTOR CO.

Fig 153: Door Lock Actuator, Left Rear Connector End View (C704)

G07848212

Courtesy of FORD MOTOR CO.

Fig 154: Inline Connector End View (C710)

G07848213

Courtesy of FORD MOTOR CO.

Fig 155: Door Ajar Switch, Left Rear Connector End View (C715)

G07848214

Courtesy of FORD MOTOR CO.

Fig 156: Window Adjust Switch, Right Rear Connector End View (C801)

G07848215

Courtesy of FORD MOTOR CO.

Fig 157: Power Window Motor, Right Rear Connector End View (C803)

G07848216

Courtesy of FORD MOTOR CO.

Fig 158: Door Lock Actuator, Right Rear Connector End View (C804)

G07848217

Courtesy of FORD MOTOR CO.

Fig 159: Inline Connector End View (C810)

G07848218

Courtesy of FORD MOTOR CO.

Fig 160: Door Ajar Switch, Right Rear Connector End View (C820)

G07848219

Courtesy of FORD MOTOR CO.

Fig 161: Map Reading Lamps Connector End View (C901)

G07848220

Courtesy of FORD MOTOR CO.

Fig 162: Vanity Mirror Lamp, Right Connector End View (C906)

G07848221

Courtesy of FORD MOTOR CO.

Fig 163: Vanity Mirror Lamp, Left Connector End View (C907)

G07848222

Courtesy of FORD MOTOR CO.

Fig 164: Electronic Compass Connector End View (C909)

G07848223

Courtesy of FORD MOTOR CO.

Fig 165: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07848224

Courtesy of FORD MOTOR CO.

Fig 166: Roof Opening Panel Switch Connector End View (C912)

G07848225

Courtesy of FORD MOTOR CO.

Fig 167: Inline Connector End View (C913)

G07848226

Courtesy of FORD MOTOR CO.

Fig 168: Interior Lamps, Front Connector End View (C918)

G07848227

Courtesy of FORD MOTOR CO.

Fig 169: Inline Connector End View (C919)

G07848228

Courtesy of FORD MOTOR CO.

Fig 170: Roof Opening Panel Module Connector End View (C921)

G07848229

Courtesy of FORD MOTOR CO.

Fig 171: Inline Connector End View (C922)

G07848230

Courtesy of FORD MOTOR CO.

Fig 172: Wiper High/Low Relay Connector End View (C1001)

G07848231

Courtesy of FORD MOTOR CO.

Fig 173: Wiper Run/Park Relay Connector End View (C1002)

G07848232

Courtesy of FORD MOTOR CO.

Fig 174: A/C Clutch Relay Connector End View (C1008)

G07848233

Courtesy of FORD MOTOR CO.

Fig 175: PCM Power Relay Connector End View (C1016)

G07848234

Courtesy of FORD MOTOR CO.

Fig 176: Starter Relay Connector End View (C1017)

G07848235

Courtesy of FORD MOTOR CO.

Fig 177: Headlamp, Left Connector End View (C1021)

G07848236

Courtesy of FORD MOTOR CO.

Fig 178: Park/Turn Lamp, Left Front Connector End View (C1023)

G07848237

Courtesy of FORD MOTOR CO.

Fig 179: Engine Cooling Fan Resistor Connector End View (C1027)

G07848238

Courtesy of FORD MOTOR CO.

Fig 180: Engine Cooling Fan Brake Relay Connector End View (C1028)

G07848239

Courtesy of FORD MOTOR CO.

Fig 181: Battery Junction Box (BJB) Connector End View (C1035a)

G07848240

Courtesy of FORD MOTOR CO.

Fig 182: Battery Junction Box (BJB) Connector End View (C1035b)

G07848241

Courtesy of FORD MOTOR CO.

Fig 183: Headlamp, Right Connector End View (C1041)

G07848242

Courtesy of FORD MOTOR CO.

Fig 184: Park/Turn Lamp, Right Front Connector End View (C1043)

G07848243

Courtesy of FORD MOTOR CO.

Fig 185: Fuel Pump Relay Connector End View (C1051)

G07848244

Courtesy of FORD MOTOR CO.

Fig 186: Engine Cooling Fan Relay Connector End View (C1055)

G07848245

Courtesy of FORD MOTOR CO.

Fig 187: High Speed Fan Control Relay Connector End View (C1056)

G07848246

Courtesy of FORD MOTOR CO.

Fig 188: Low Speed Fan Control Relay Connector End View (C1058)

G07848247

Courtesy of FORD MOTOR CO.

Fig 189: Dual Pressure Switch Connector End View (C1062)

G07848248

Courtesy of FORD MOTOR CO.

Fig 190: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07848249

Courtesy of FORD MOTOR CO.

Fig 191: Ignition Coil Connector End View (C1065)

G07848250

Courtesy of FORD MOTOR CO.

Fig 192: Idle Air Control (IAC) Valve Connector End View (C1066)

G07848251

Courtesy of FORD MOTOR CO.

Fig 193: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07848252

Courtesy of FORD MOTOR CO.

Fig 194: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07848253

Courtesy of FORD MOTOR CO.

Fig 195: Injector Pressure Sensor Connector End View (C1073)

G07848254

Courtesy of FORD MOTOR CO.

Fig 196: Engine Cooling Fan Motor 1 Connector End View (C1074)

G07848255

Courtesy of FORD MOTOR CO.

Fig 197: Engine Cooling Fan Motor 2 Connector End View (C1077)

G07848256

Courtesy of FORD MOTOR CO.

Fig 198: Rear Window Defrost Relay 2 Connector End View (C1099)

G07848257

Courtesy of FORD MOTOR CO.

Fig 199: Battery Connector End View (C1100a)

G07848258

Courtesy of FORD MOTOR CO.

Fig 200: Battery Connector End View (C1100b)

G07848259

Courtesy of FORD MOTOR CO.

Fig 201: Generator Connector End View (C1104a)

G07848260

Courtesy of FORD MOTOR CO.

Fig 202: Generator Connector End View (C1104b)

G07848261

Courtesy of FORD MOTOR CO.

Fig 203: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)

G07848262

Courtesy of FORD MOTOR CO.

Fig 204: A/C Clutch Cycling Pressure Switch Connector End View (C1525)

G07848263

Courtesy of FORD MOTOR CO.

Fig 205: Front Blower Motor Connector End View (C2004)

G07848264

Courtesy of FORD MOTOR CO.

Fig 206: Flexible Fuel Sensor Module Connector End View (C2005)

G07848265

Courtesy of FORD MOTOR CO.

Fig 207: Brake Shift Interlock Connector End View (C2008)

G07848266

Courtesy of FORD MOTOR CO.

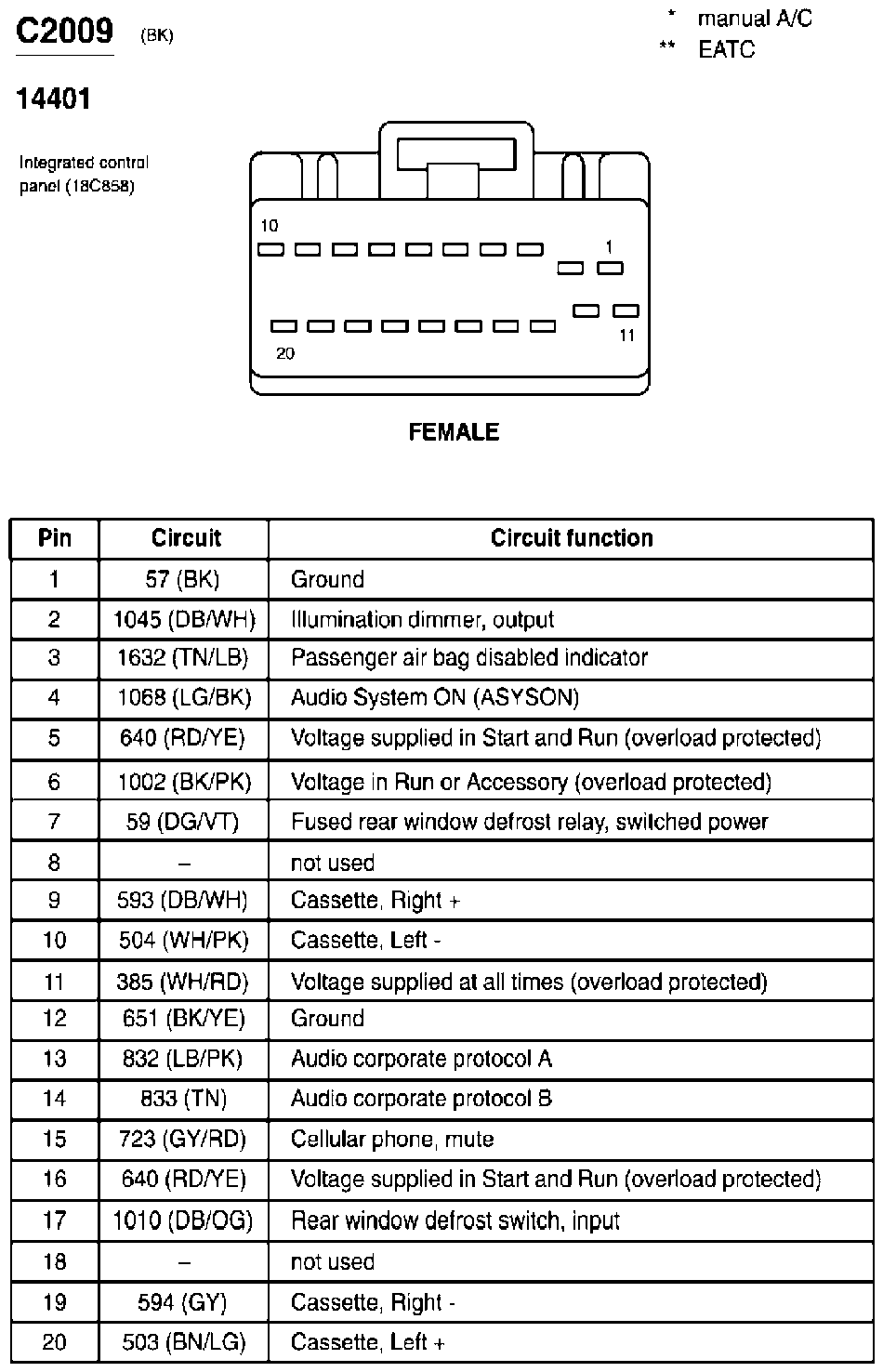

Fig 208: Integrated Control Panel Connector End View (C2009)

G07848267

Courtesy of FORD MOTOR CO.

Fig 209: Blower Motor Relay Connector End View (C2017)

G07848268

Courtesy of FORD MOTOR CO.

Fig 210: Rear Window Defrost Relay 1 Connector End View (C2021)

G07848269

Courtesy of FORD MOTOR CO.

Fig 211: Electronic Flasher Module Connector End View (C2027)

G07848270

Courtesy of FORD MOTOR CO.

Fig 212: Accessory Relay Connector End View (C2050)

G07848271

Courtesy of FORD MOTOR CO.

Fig 213: One-Touch Window Relay Connector End View (C2051)

G04611179

Courtesy of FORD MOTOR CO.

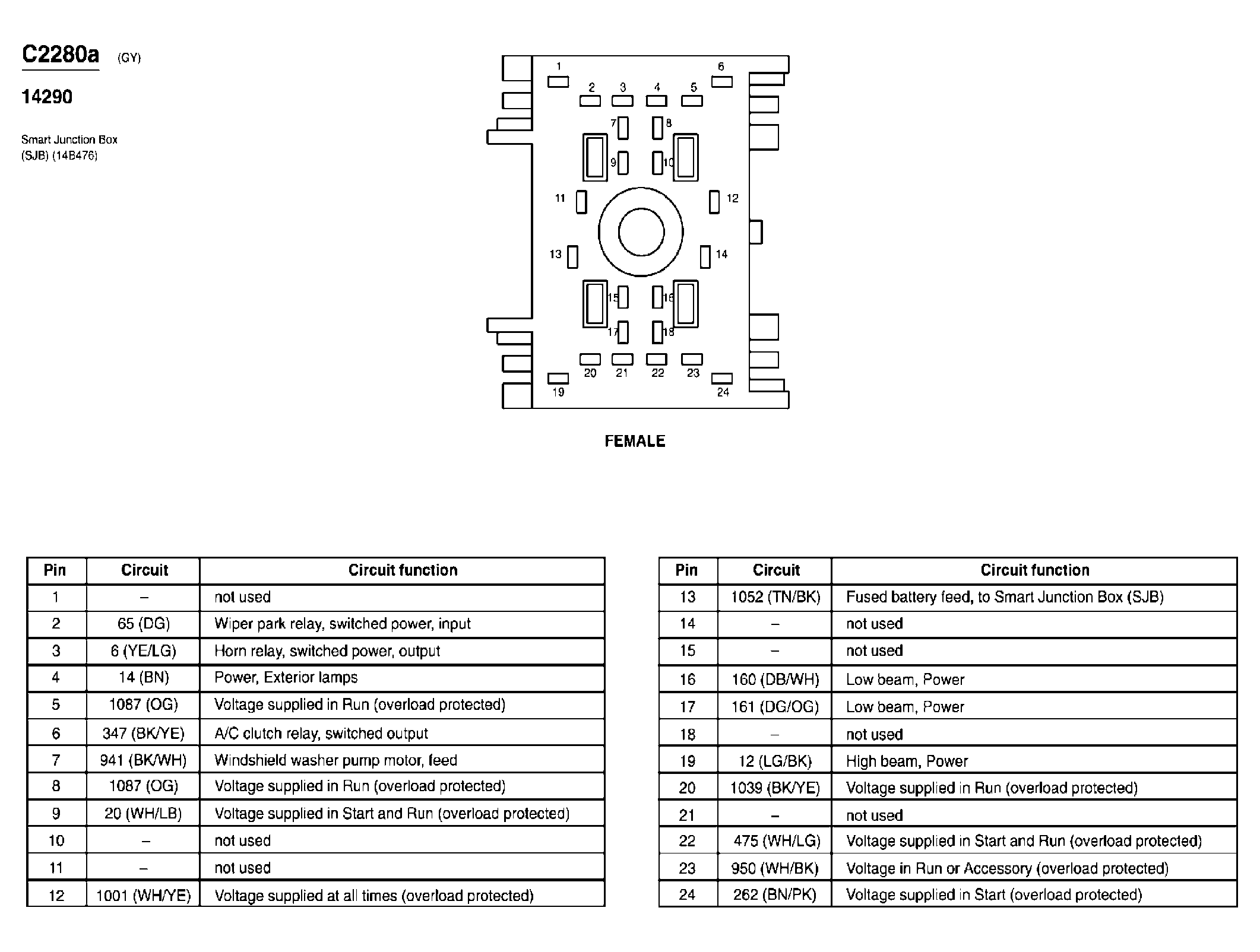

Fig 214: Smart Junction Box (SJB) Connector End View (C2280a)

G04611180

Courtesy of FORD MOTOR CO.

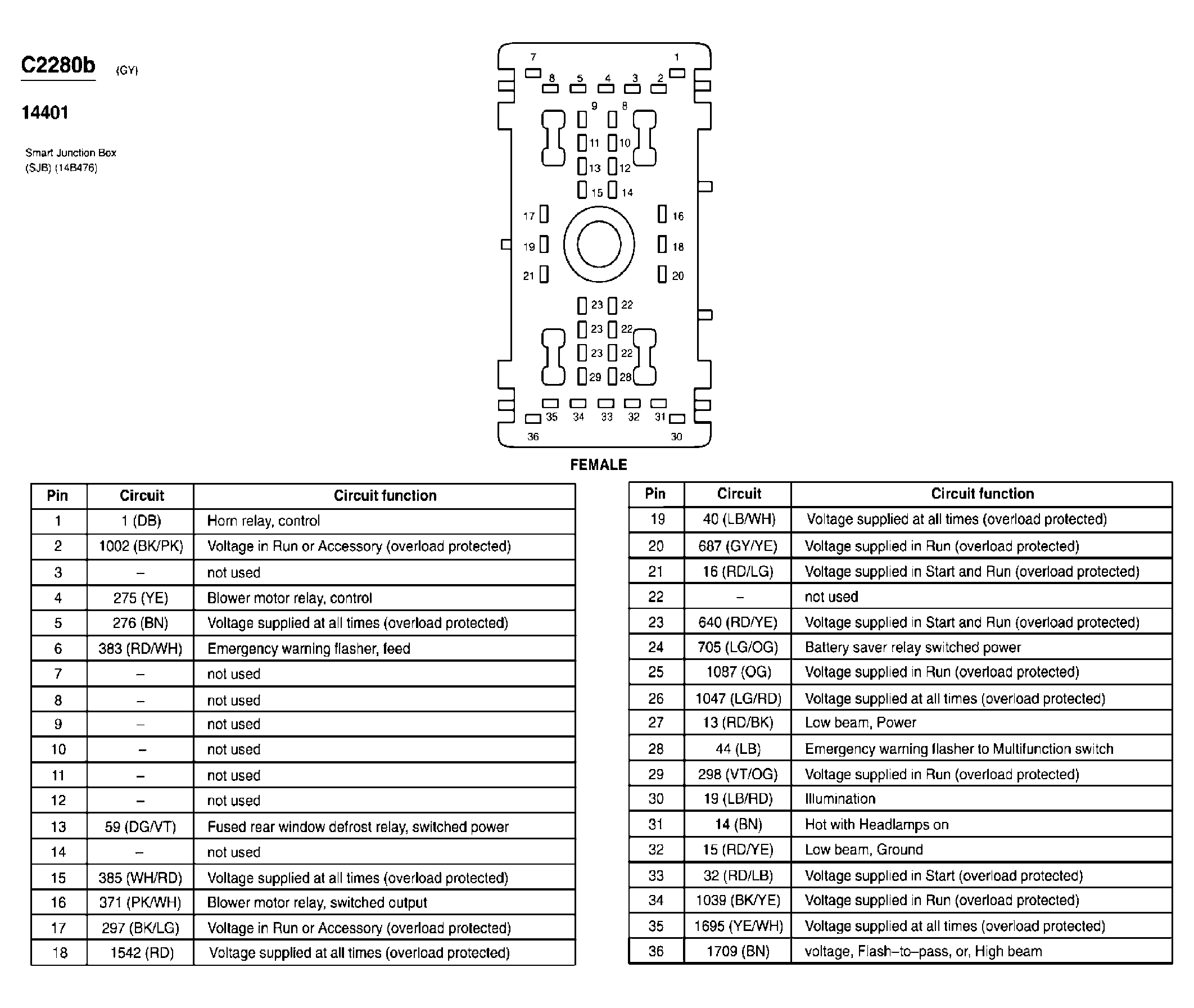

Fig 215: Smart Junction Box (SJB) Connector End View (C2280b)

G04611181

Courtesy of FORD MOTOR CO.

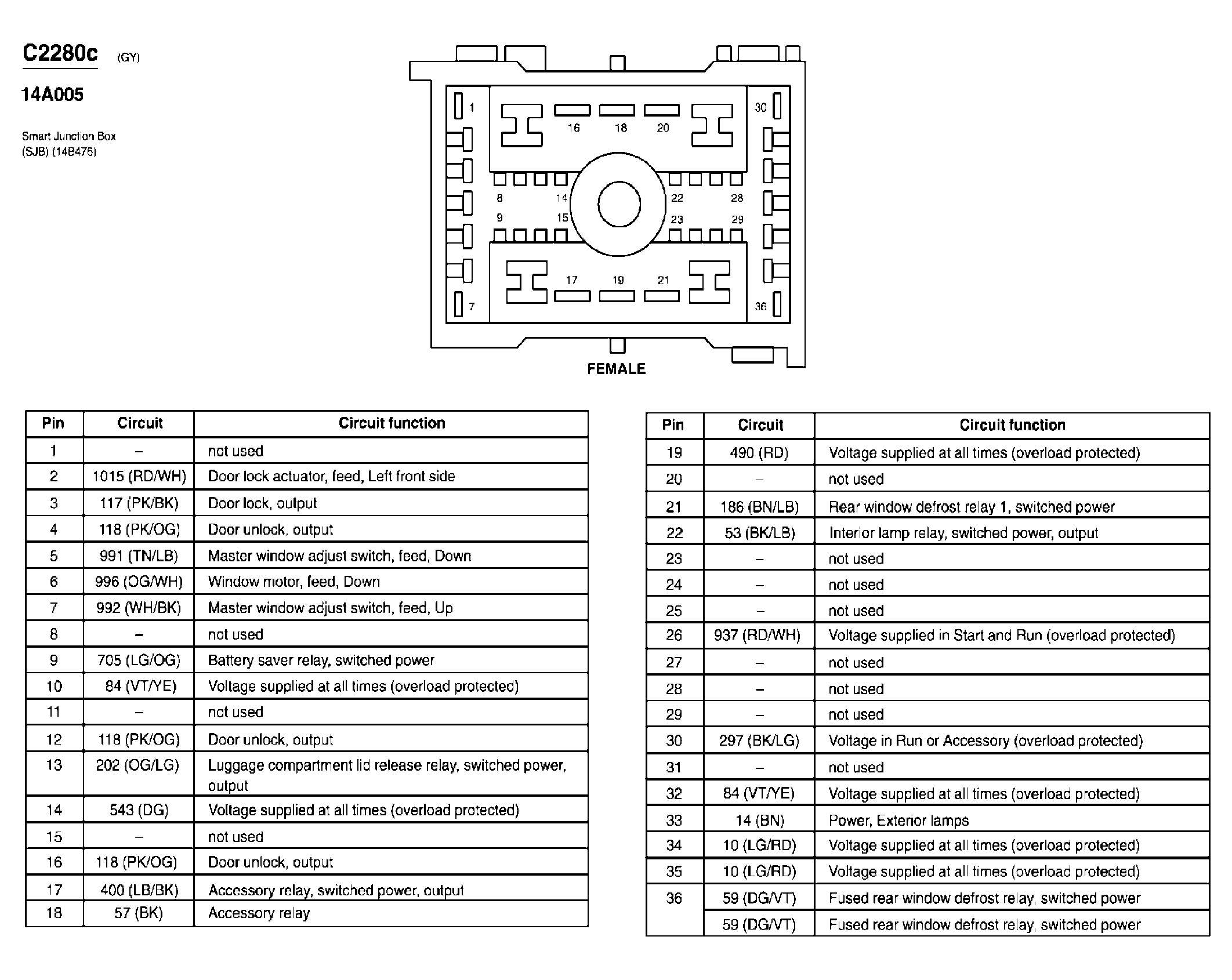

Fig 216: Smart Junction Box (SJB) Connector End View (C2280c)

G04611182

Courtesy of FORD MOTOR CO.

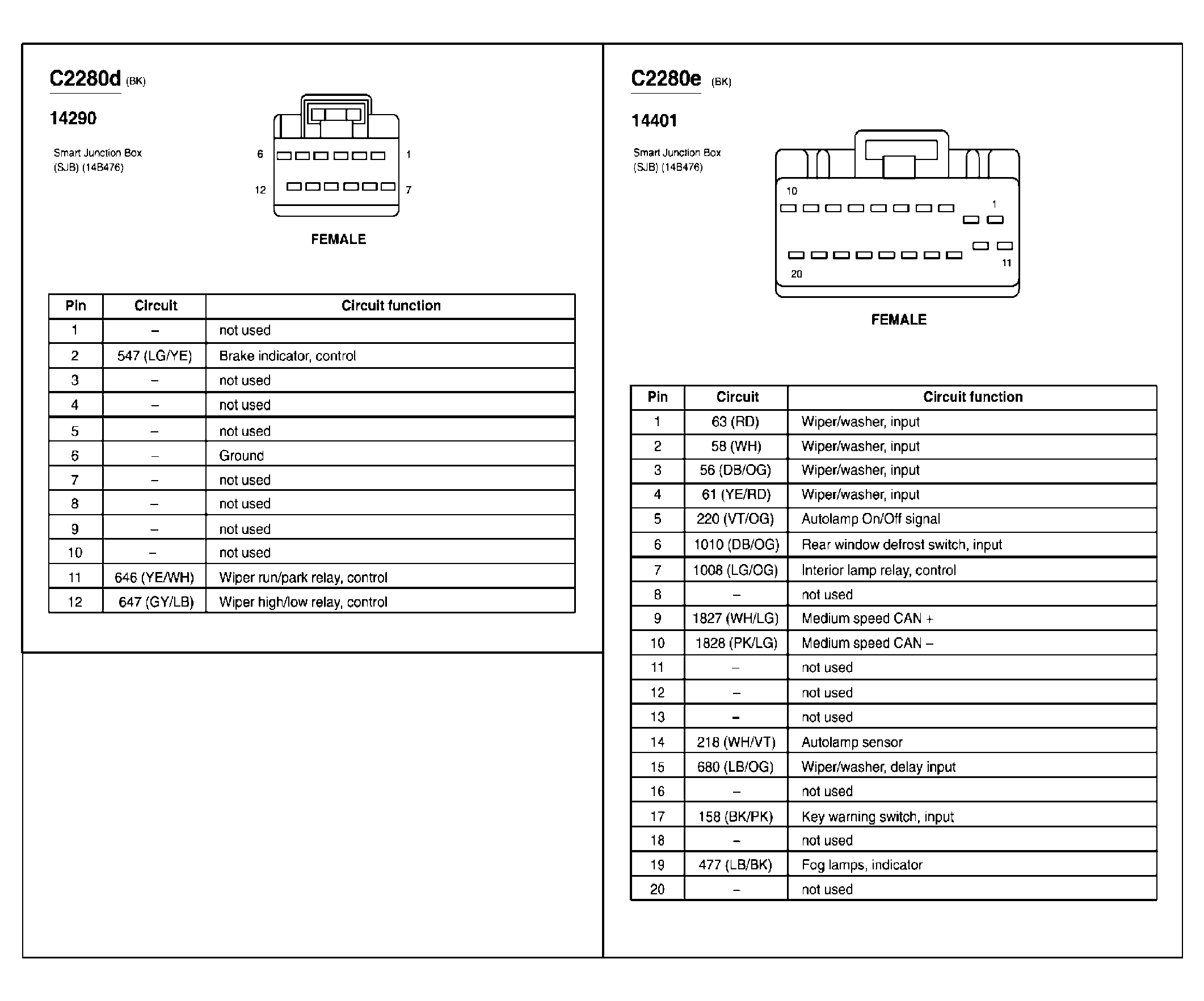

Fig 217: Smart Junction Box (SJB) Connector End View (C2280d)

G04611183

Courtesy of FORD MOTOR CO.

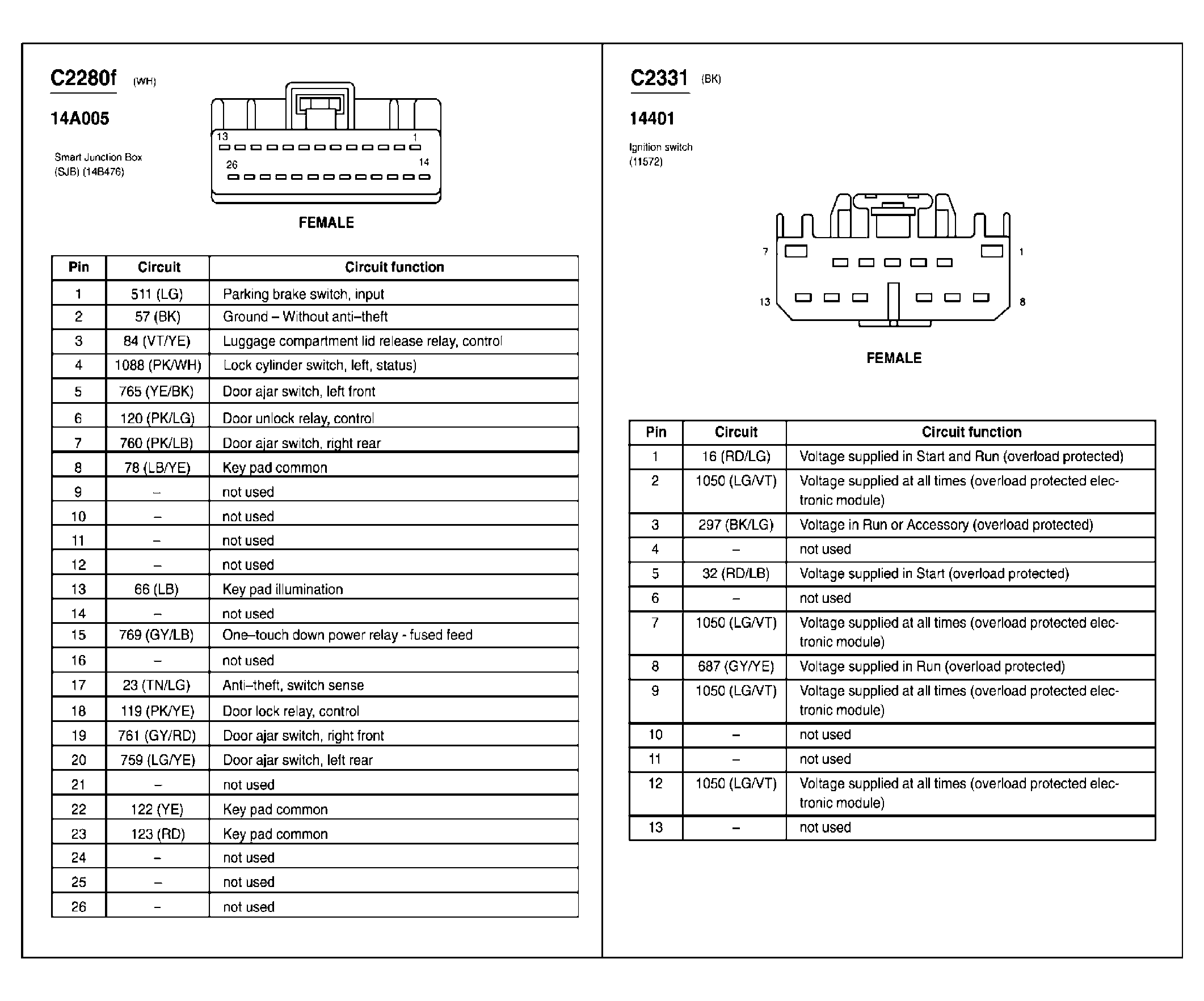

Fig 218: Smart Junction Box (SJB) Connector End View (C2280f)

G04611184

Courtesy of FORD MOTOR CO.

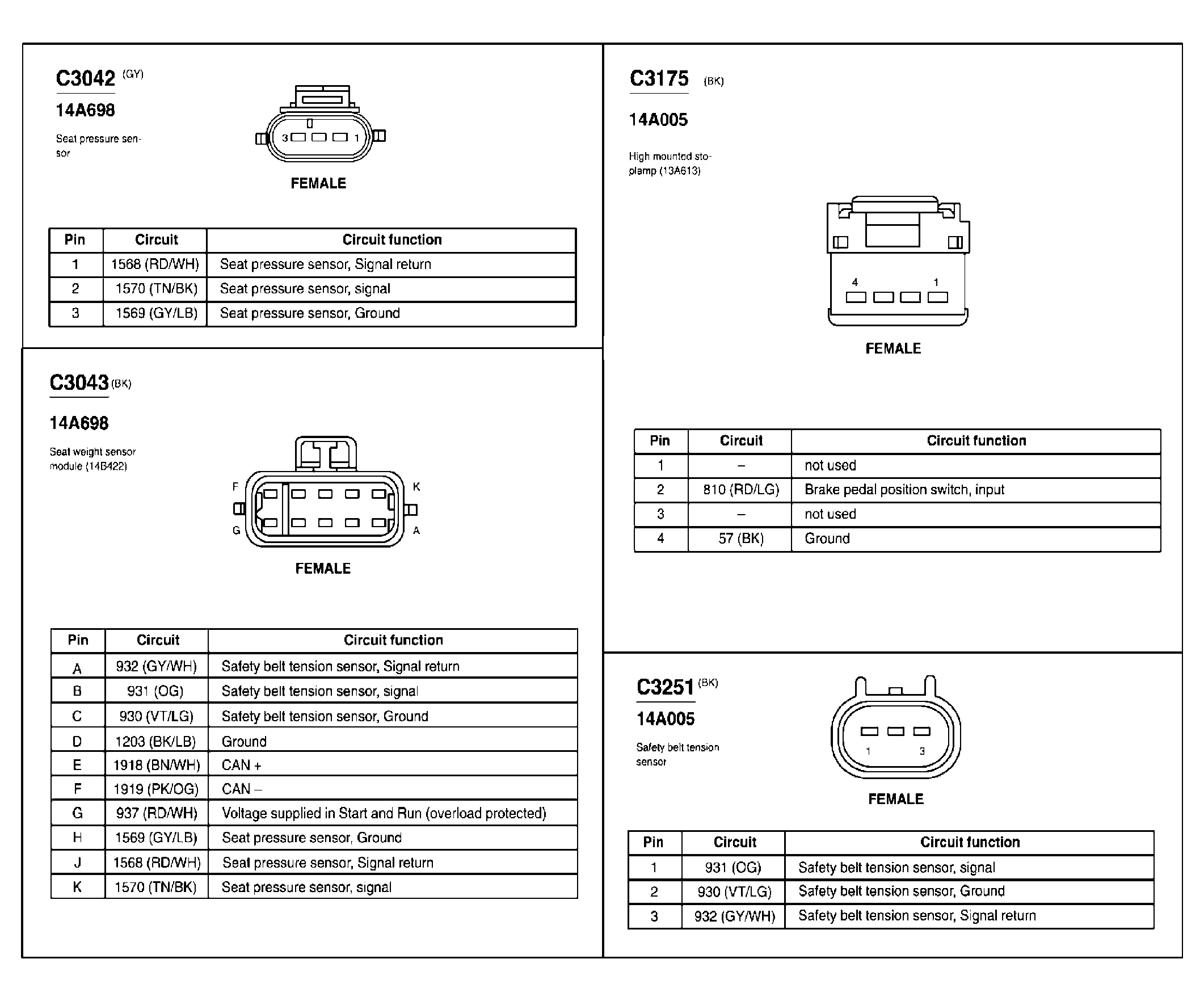

Fig 219: Seat Pressure Sensor Connector End View (C3042)

G04611185

Courtesy of FORD MOTOR CO.
