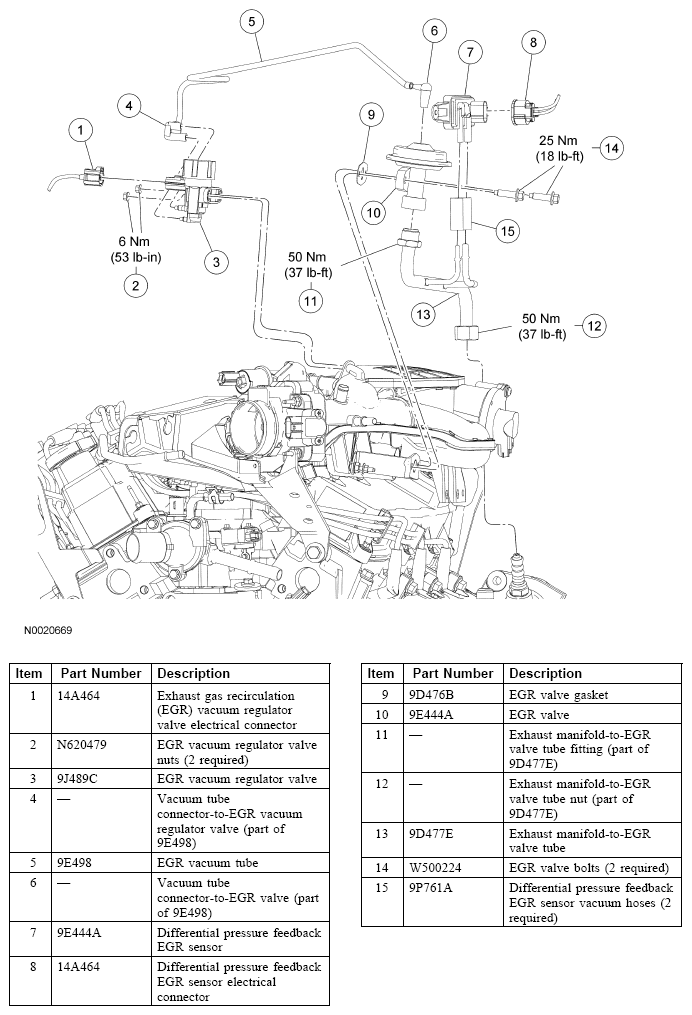

Exhaust Gas Recirculation (EGR) System Components - Exploded View

Fig 1: Exhaust Gas Recirculation (EGR) System Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedures in this article.
