Exhaust System - Exploded View

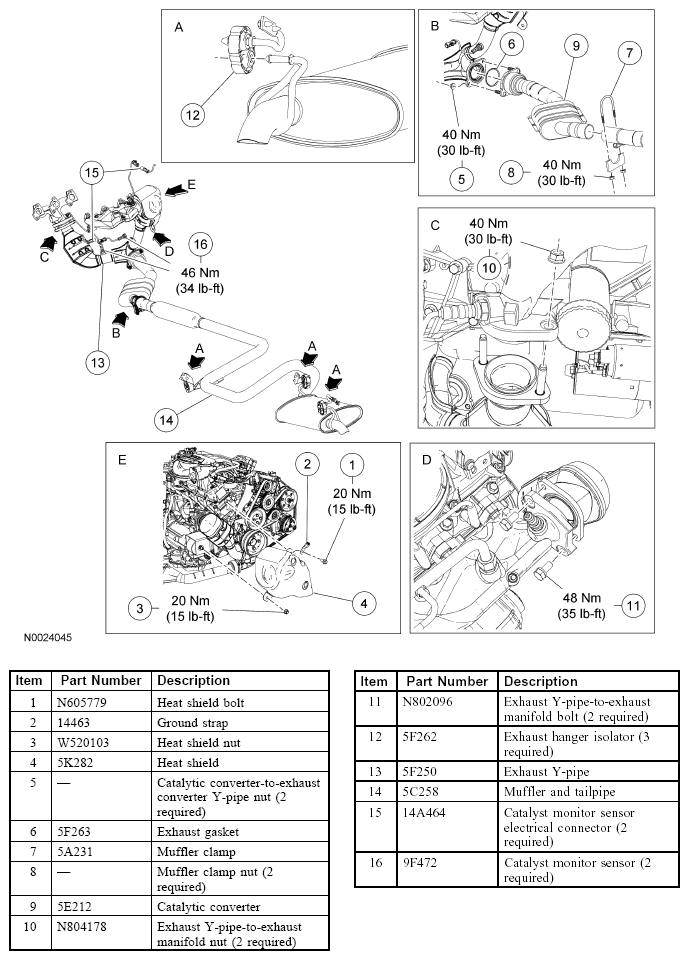

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the applicable instructions in this article.
