Cylinder Head - LH: Notes

MATERIAL

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-

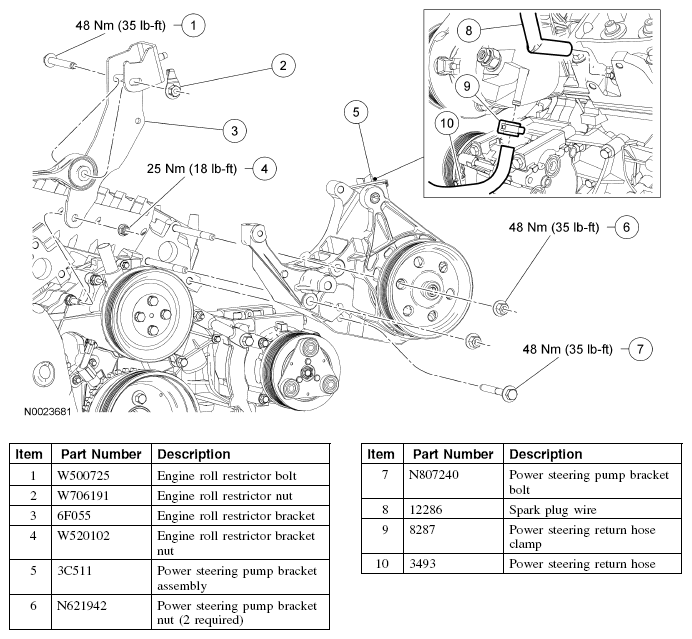

Fig 1: Removing/Installing Cylinder Head - LH Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

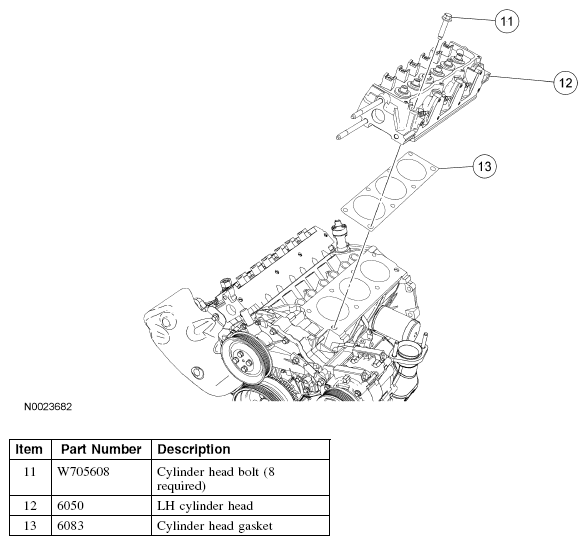

Fig 2: Removing/Installing Cylinder Head - LH Components (2 Of 2)

Courtesy of FORD MOTOR CO.
