Powertrain Control Module (PCM): Notes

Fig 1: Identifying Powertrain Control Module (PCM) Components (1 of 2)

Courtesy of FORD MOTOR CO.

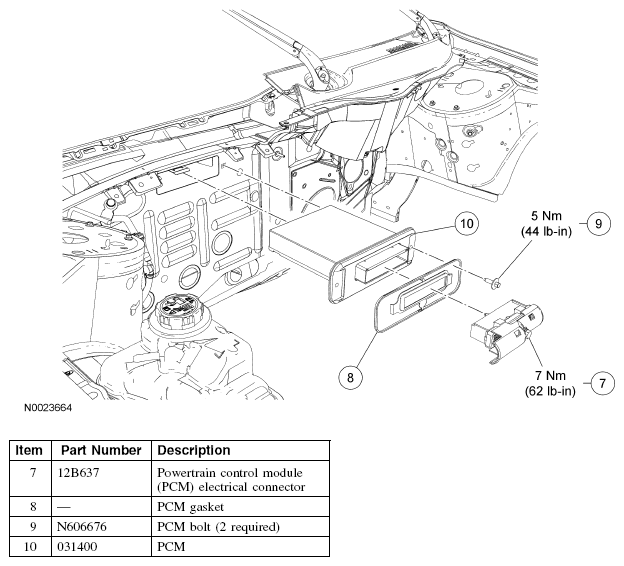

Fig 2: Powertrain Control Module (PCM) Replacement Components With Torque Specifications (2 of 2)

Courtesy of FORD MOTOR CO.
