Steering Gear: Notes

SPECIAL TOOL(S) DESCRIPTION CHART

	Holding Fixture, Transmission 307-003 (T57L-500-B)
	Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A)

MATERIAL SPECIFICATION

Item	Specification
Premium Long-Life Grease XG-1-C	ESA-M1C75-B

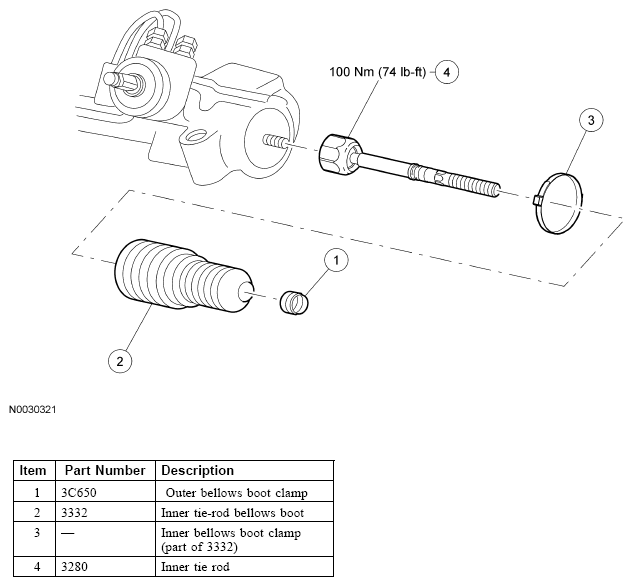

Fig 1: Steering Gear Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
