Taurus SE, 3.0 2
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission External Controls
›
Removal And Installation
›
Brake Shift Interlock Actuator - Column Shift
›
Notes
Brake Shift Interlock Actuator - Column Shift: Notes

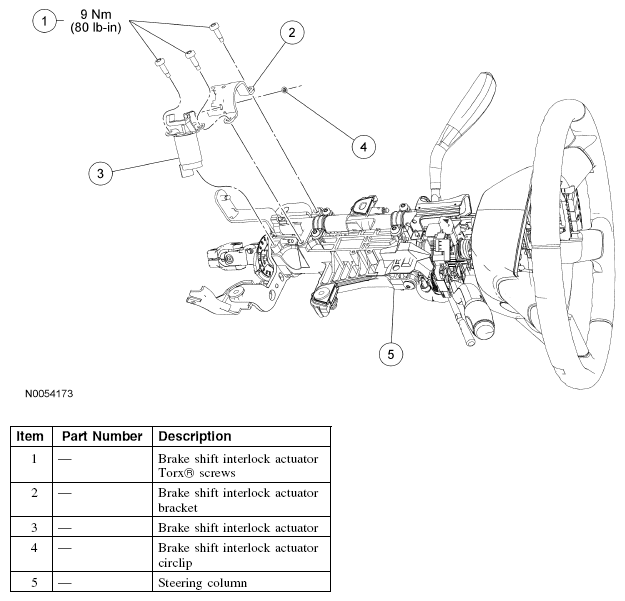

Fig 1: Exploded View Of Brake Shift Interlock Actuator - Column Shift With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
