Taurus SE, 3.0 2
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission External Controls
›
Removal And Installation
›
Transmission Selector Lever - Column Shift
›
Notes
Transmission Selector Lever - Column Shift: Notes

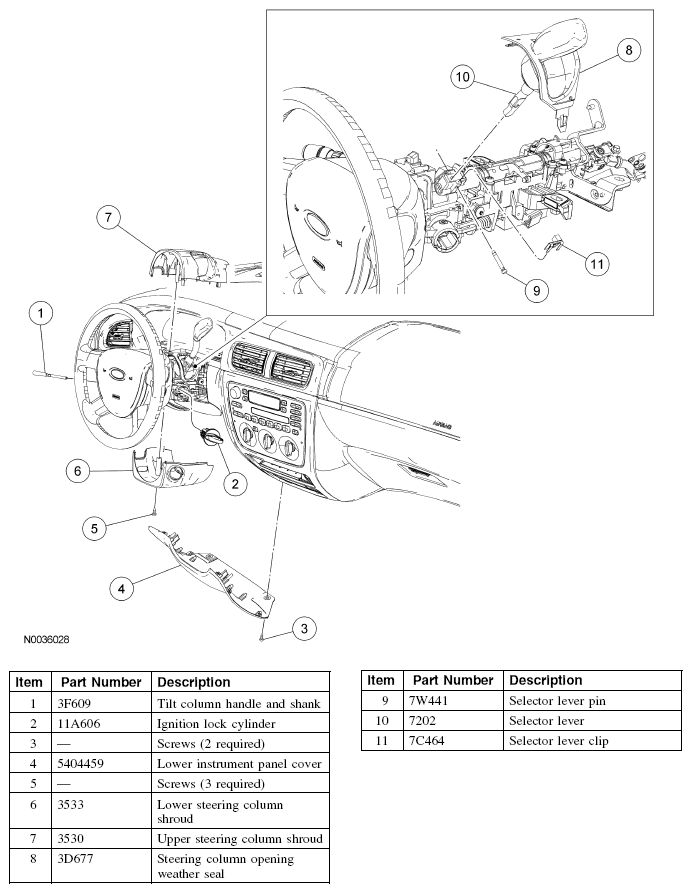

Fig 1: Exploded View Of Transmission Selector Lever - Column Shift
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
