Cylinder Head: Notes

SPECIAL TOOL(S)

G04709292Courtesy of FORD MOTOR CO.
 Compressor, Valve Spring 303-163 (T81P-6513-A)
MATERIAL

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Synthetic Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

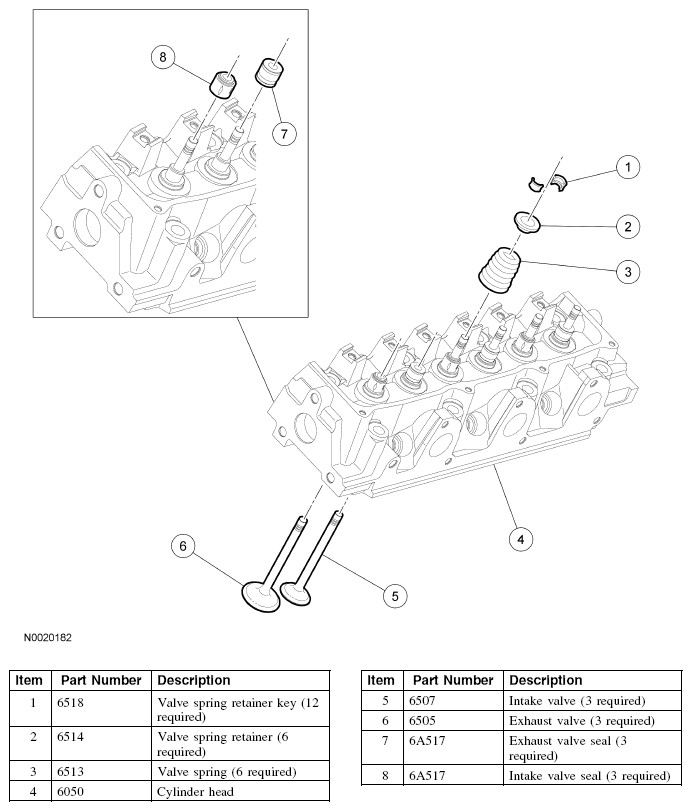

Fig 1: Identifying Cylinder Head Components
G04709293Courtesy of FORD MOTOR CO.
