Steering Gear: Notes

SPECIAL TOOL(S) DESCRIPTION CHART

	Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent
	Tie-Rod End Remover Tool 211-001 (TOOL-3290-D) or equivalent

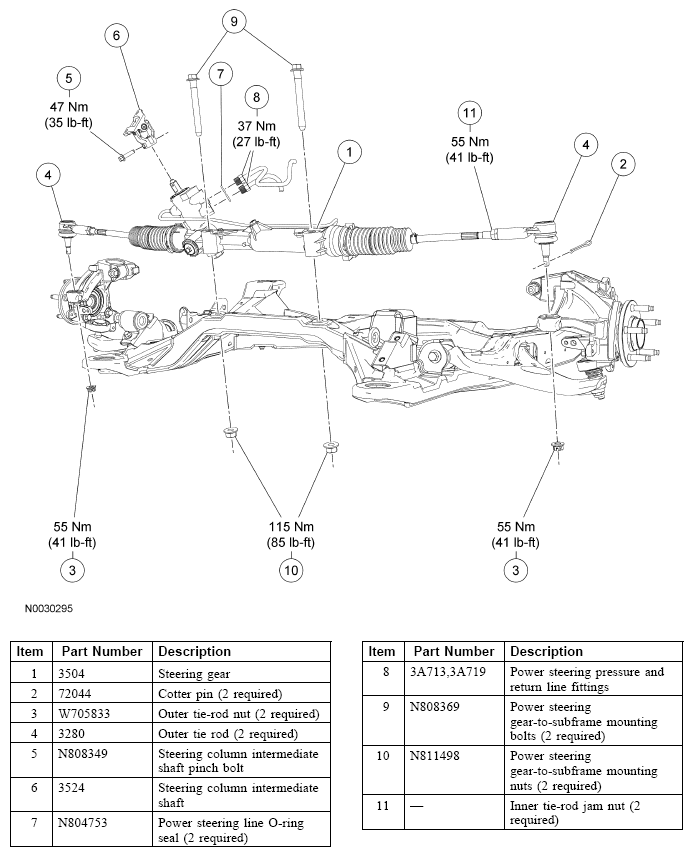

Fig 1: Steering Gear Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
