Neutral Drive Accumulator

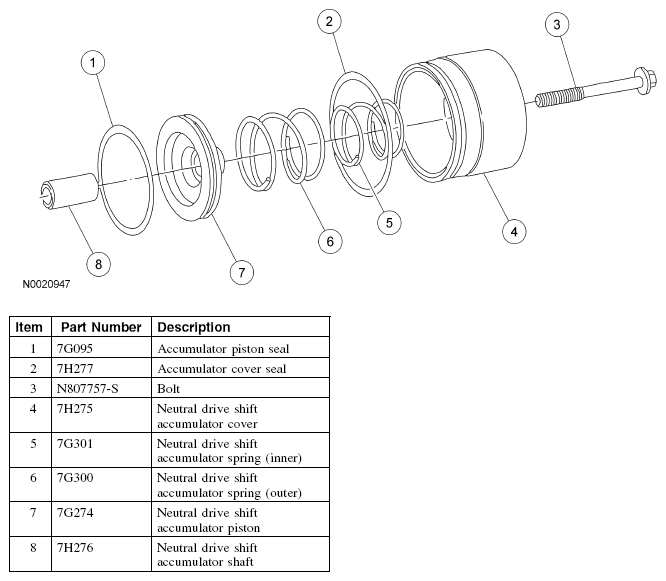

Fig 1: Exploded View Of Neutral Drive Accumulator
G04710313Courtesy of FORD MOTOR CO.
  1. Lightly coat the seals with petroleum jelly prior to installation.
    • Remove and install a new neutral drive accumulator piston seal.
    • Remove and install a new neutral drive accumulator cover seal.
Fig 2: Locating Neutral Drive Accumulator Cover Seal
G04710314Courtesy of FORD MOTOR CO.
