Reverse Clutch: Disassembly

  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retaining snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

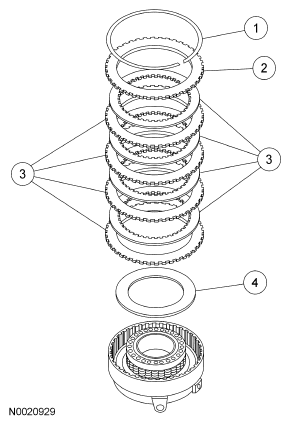

    Fig 1: Identifying Reverse Clutch Pack Assembly
    G04710216Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not fully compress the spring retainer.
    Fig 2: Removing Snap Ring Using Special Tool (307-015)
    G04710217Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the snap ring.
  3. Remove the reverse clutch support and spring.
    Fig 3: Locating Reverse Clutch Support And Spring
    G04710218Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston.
    Fig 4: Removing Reverse Clutch Piston
    G04710219Courtesy of FORD MOTOR CO.
  5. Remove the reverse clutch piston outer seal.
    Fig 5: Locating Reverse Clutch Piston Outer Seal
    G04710220Courtesy of FORD MOTOR CO.
  6. Remove the reverse clutch piston inner seal.
    Fig 6: Locating Reverse Clutch Piston Inner Seal
    G04710221Courtesy of FORD MOTOR CO.
