Differential Seals: Installation

Using the special tools, install the LH differential seal.

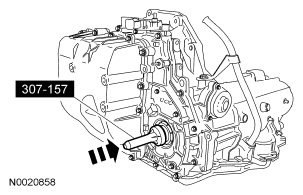

Fig 1: Installing Differential Seal Using Special Tool (303-157)
Courtesy of FORD MOTOR CO.
Using the special tools, install the RH seal.

Fig 2: Installing RH Seal Using Special Tool (303-317) And (303-157)
Courtesy of FORD MOTOR CO.
Install the halfshafts into the vehicle. For additional information, refer to FRONT DRIVE HALFSHAFTS .
Reconnect the battery ground cable.
