Direct Clutch Cylinder: Notes

SPECIAL TOOL CHART

G04710162Courtesy of FORD MOTOR CO.
Remover, O-Ring Seal 100-010 (T71P-19703-C)
G04710163Courtesy of FORD MOTOR CO.
Dial Indicator Gauge With Holding Fixture 100-D002 (D78P-4201-B)
G04710164Courtesy of FORD MOTOR CO.
Compressor, Clutch Spring 307-015 (T65L-77515-A)
G04710165Courtesy of FORD MOTOR CO.
Protector, Piston Seal 307-168 (T86P-70234-A)

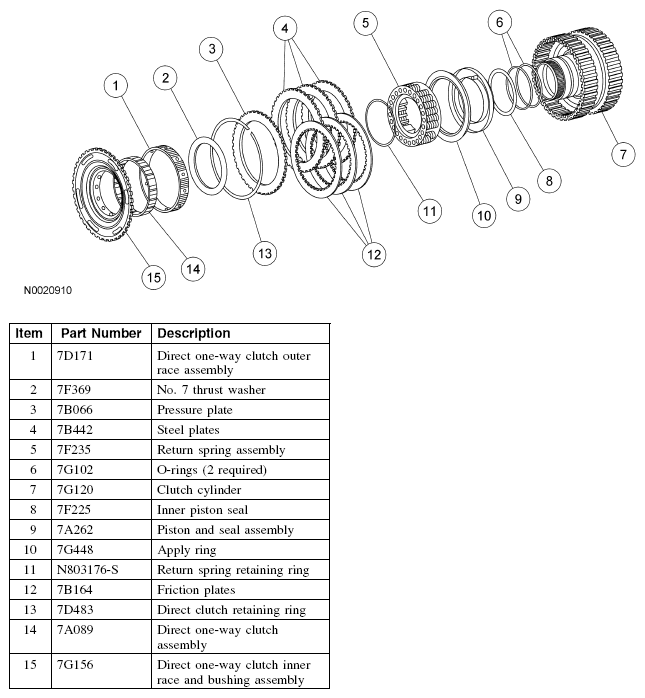

Fig 1: Exploded View Of Direct Clutch Cylinder
G04710166Courtesy of FORD MOTOR CO.
