Pump Assembly: Notes

SPECIAL TOOL CHART

G04710084Courtesy of FORD MOTOR CO.
 Remover, Pump Bearing/Fluid Seal 307-394
G04710085Courtesy of FORD MOTOR CO.
 Installer, Pump Bearing/Fluid Seal 307-393

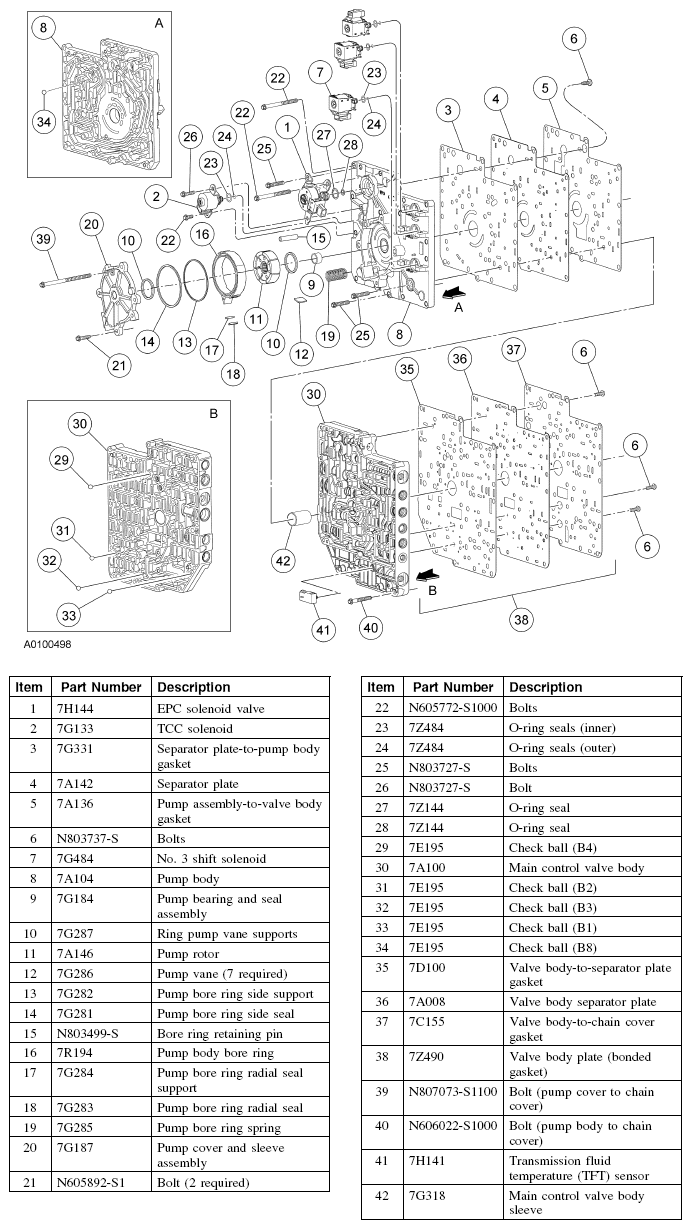

Fig 1: Identifying Main Control Pump Assembly Components
G04710086Courtesy of FORD MOTOR CO.
