Reverse Clutch: Notes

SPECIAL TOOL CHART

G04710212Courtesy of FORD MOTOR CO.
 Feeler Gauge Set 303-D027 (D81L-4201-A) or equivalent
G04710213Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring 307-015 (T65L-77515-A)
G04710214Courtesy of FORD MOTOR CO.
 Protector, Piston Seal 307-322 (T94P-77001-PH)

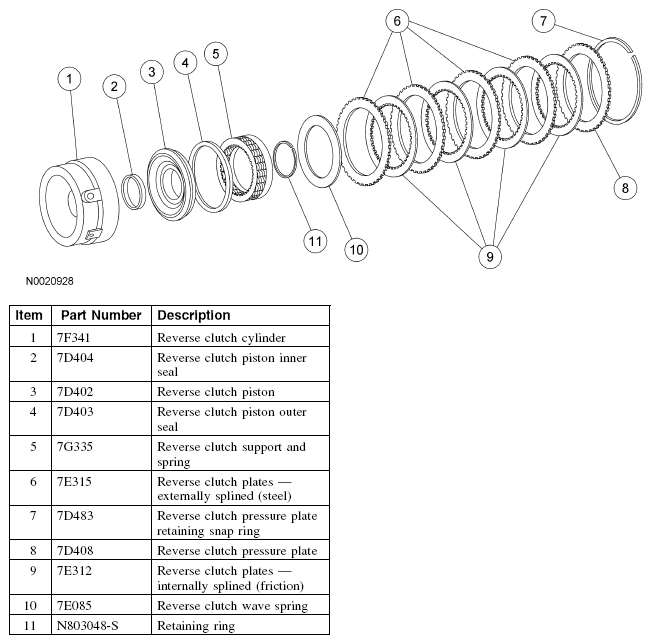

Fig 1: Exploded View Of Reverse Clutch
G04710215Courtesy of FORD MOTOR CO.
