Differential Seals: Notes

SPECIAL TOOL CHART

Courtesy of FORD MOTOR CO.	Step Plate Adapter 205-D014 (D80L-630-3) or equivalent
Courtesy of FORD MOTOR CO.	Remover, Crankshaft Front Oil Seal 303-107 (T74P-6700-A)
Courtesy of FORD MOTOR CO.	Installer, Front Cover Oil Seal 303-335 (T88T-6701-A)
Courtesy of FORD MOTOR CO.	Installer, Halfshaft Output Fluid Seal 307-157 (T86P-1177-B)
Courtesy of FORD MOTOR CO.	Aligner, Output Shaft Fluid Seal 307-317 (T94P-77001-JH)

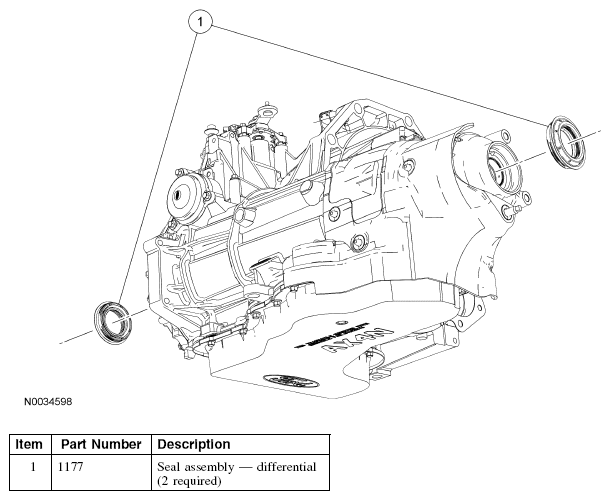

Fig 1: Identifying Differential Seals

Courtesy of FORD MOTOR CO.
