Electronic Throttle Control Module Connectors

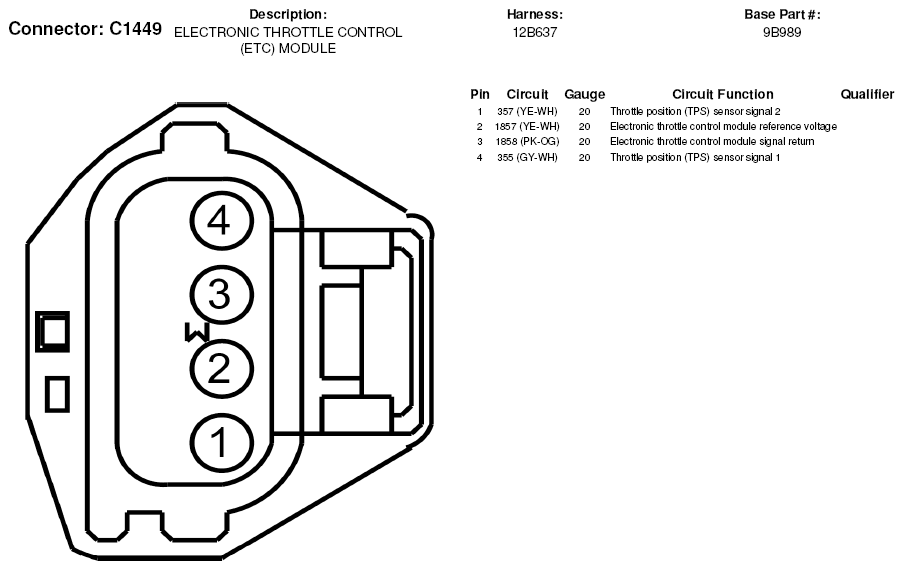

Fig 1: Electronic Throttle Control Module Connector End View (C1449)
G05178201Courtesy of FORD MOTOR CO.
