Engine Cooling Fan Module Connector

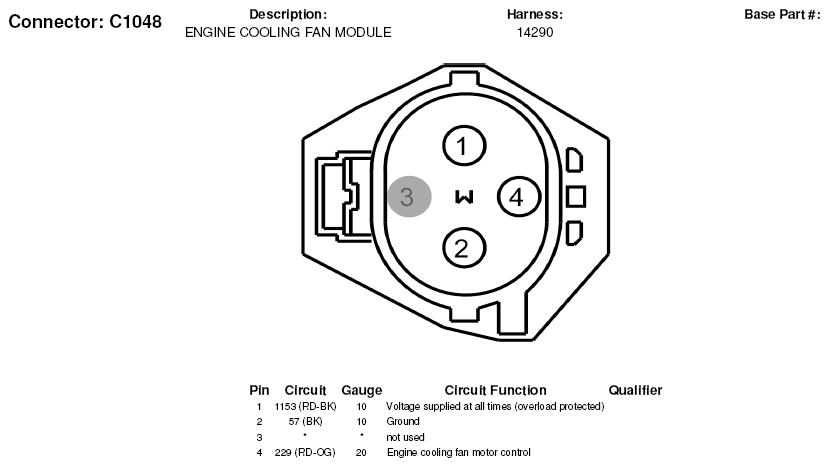

Fig 1: Engine Cooling Fan Module Connector End View (C1048)
G05178171Courtesy of FORD MOTOR CO.
