HVAC Module EATC Connectors

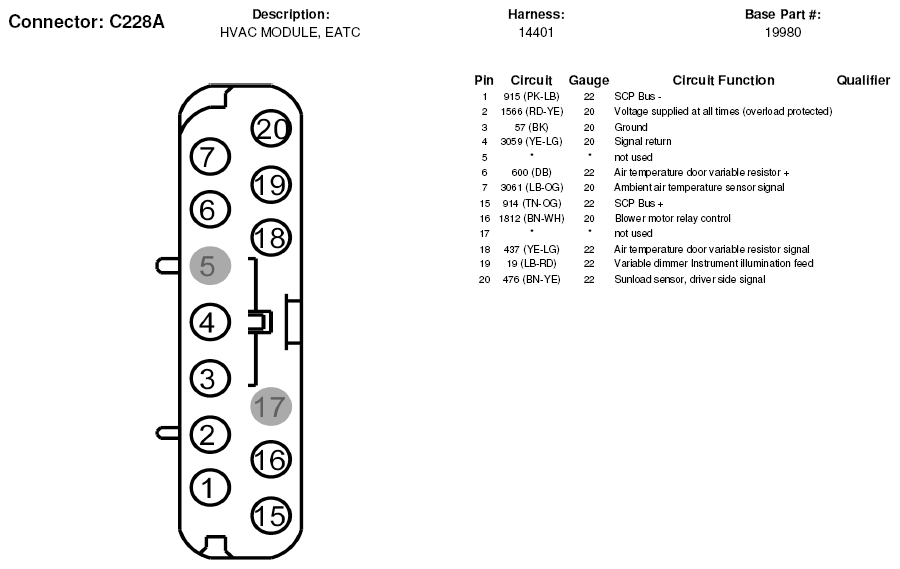

Fig 1: HVAC Module EATC Connector End View (C228A)
G05178024Courtesy of FORD MOTOR CO.

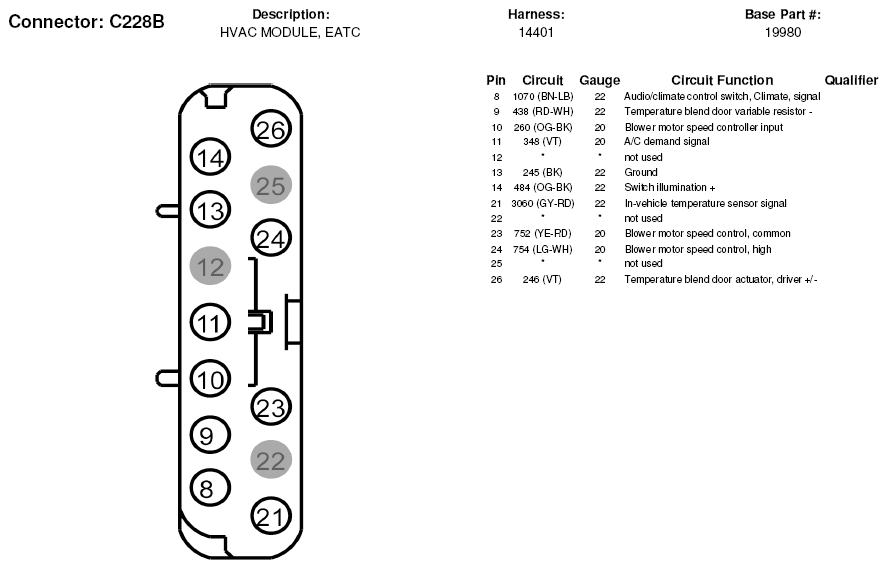

Fig 2: HVAC Module EATC Connector End View (C228B)
G05178025Courtesy of FORD MOTOR CO.
