Heated Seat Module Connectors

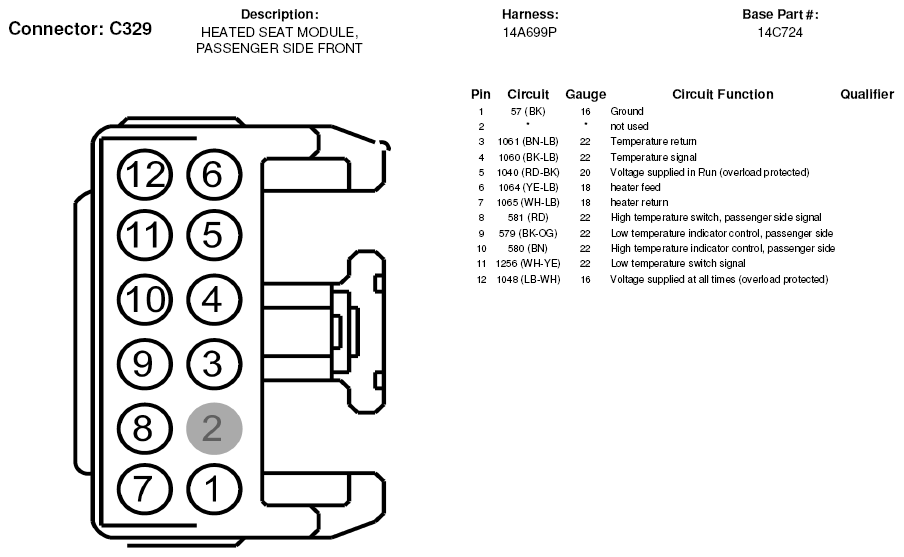

Fig 1: Heated Seat Module Connector End View (C329)
G05178069Courtesy of FORD MOTOR CO.

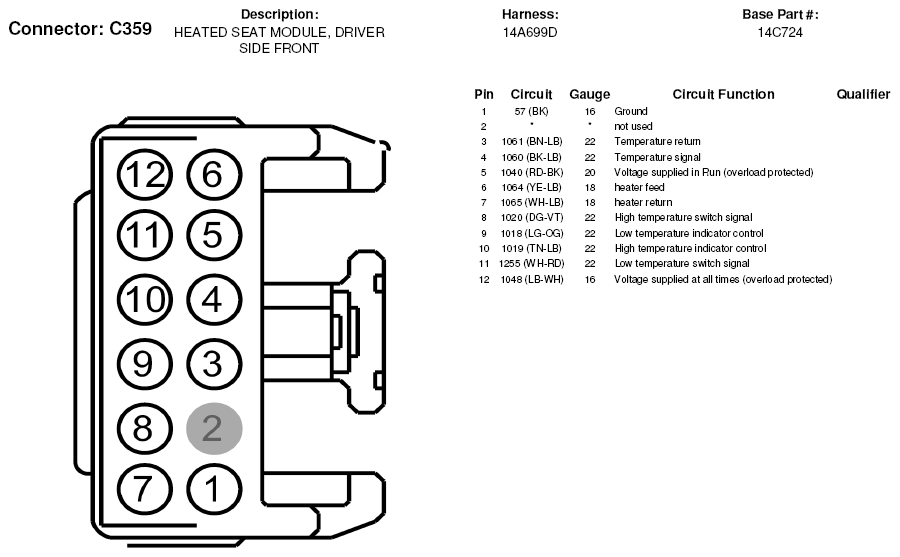

Fig 2: Heated Seat Module Connector End View (C359)
G05178079Courtesy of FORD MOTOR CO.
