Steering Wheel/Speed Control Switch Connectors

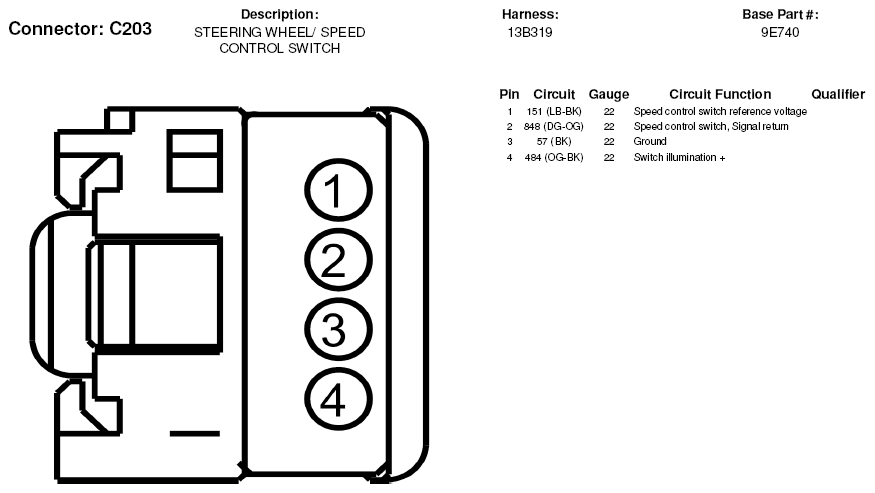

Fig 1: Steering Wheel/Speed Control Switch Connector End View (C203)
G05178013Courtesy of FORD MOTOR CO.

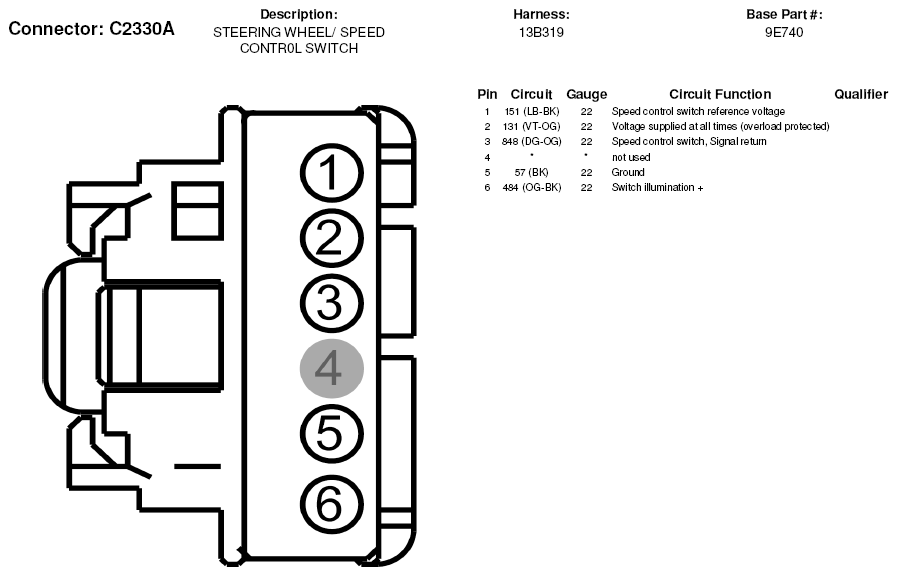

Fig 2: Steering Wheel/Speed Control Switch Connector End View (C2330A)
G05178236Courtesy of FORD MOTOR CO.

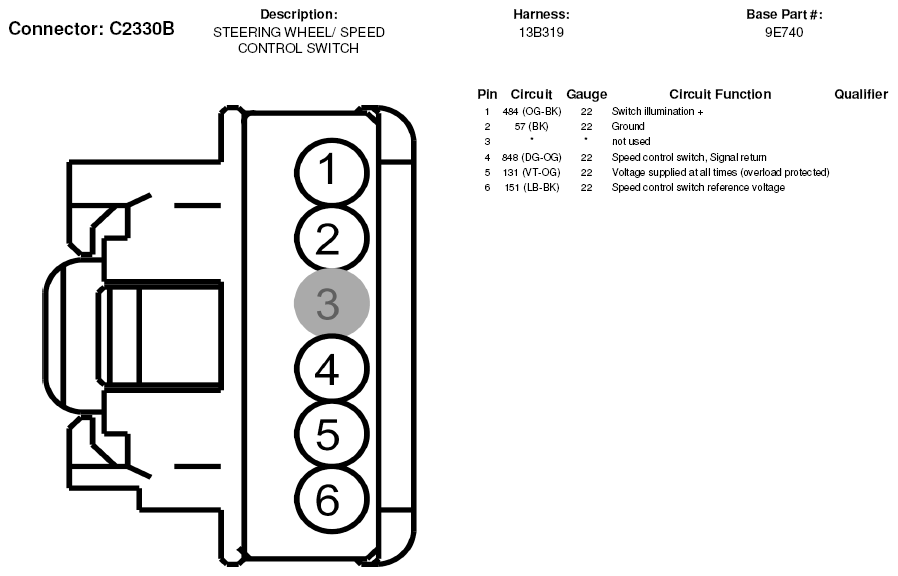

Fig 3: Steering Wheel/Speed Control Switch Connector End View (C2330B)
G05178237Courtesy of FORD MOTOR CO.
