Message Center Switch Connector
Message Center Switch Connector

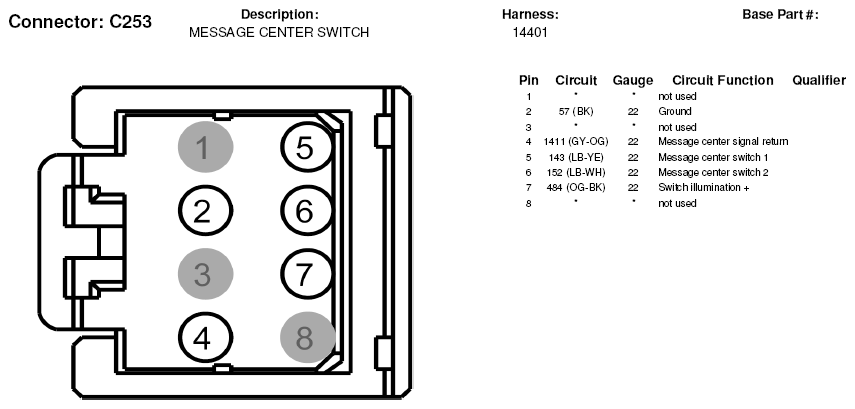

Fig 1: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
