Safety Belt Buckle - Front: Notes

NOTE: LH shown, RH similar.

NOTE: Seat backrest and armrest removed for clarity.

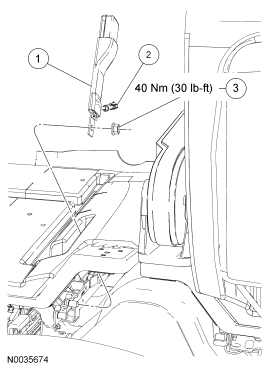

Fig 1: Exploded View Of Front Safety Belt Buckle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61202 RH/ 61203 LH	Safety belt buckle
2	-	Electrical connector
3	-	Nut, safety belt buckle
