Lighting Control Module Connectors

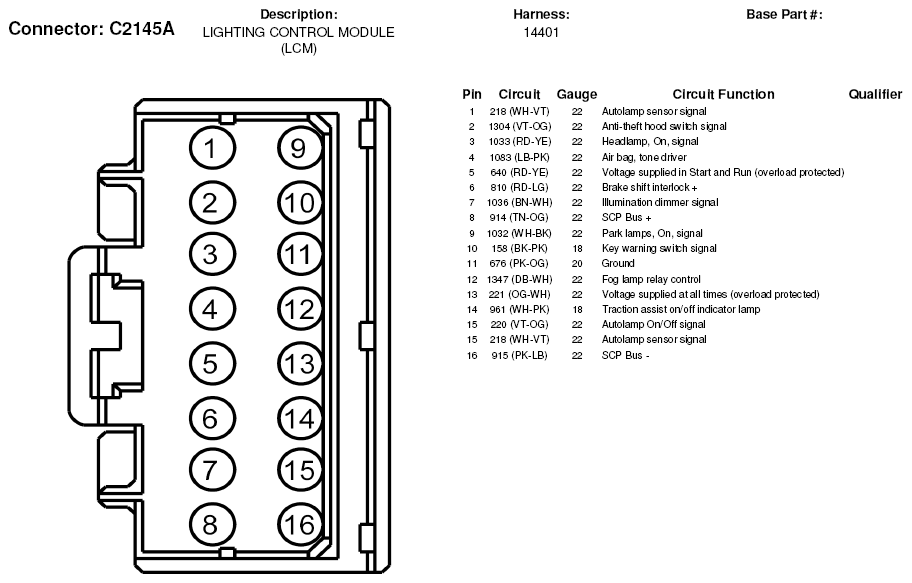

Fig 1: Lighting Control Module Connector End View (C2145A)

Courtesy of FORD MOTOR CO.

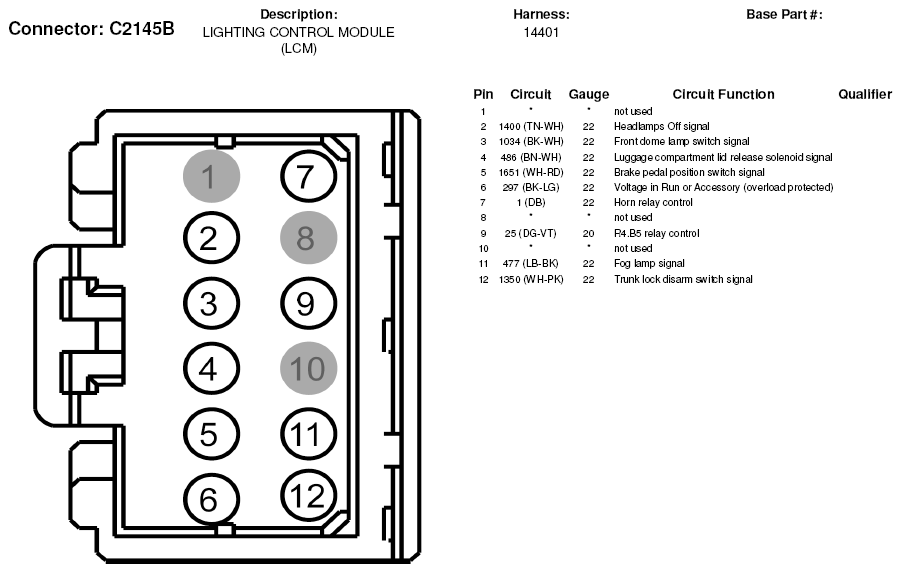

Fig 2: Lighting Control Module Connector End View (C2145B)

Courtesy of FORD MOTOR CO.

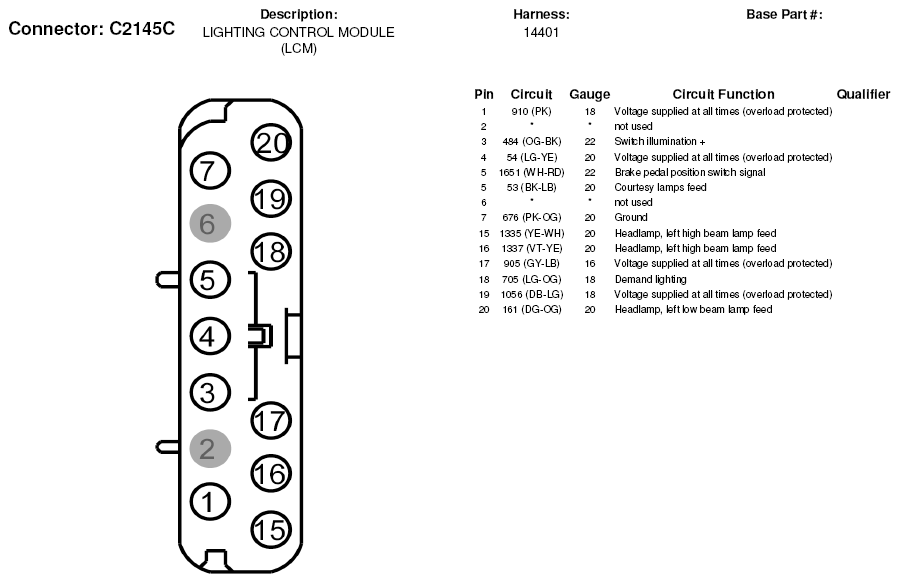

Fig 3: Lighting Control Module Connector End View (C2145C)

Courtesy of FORD MOTOR CO.

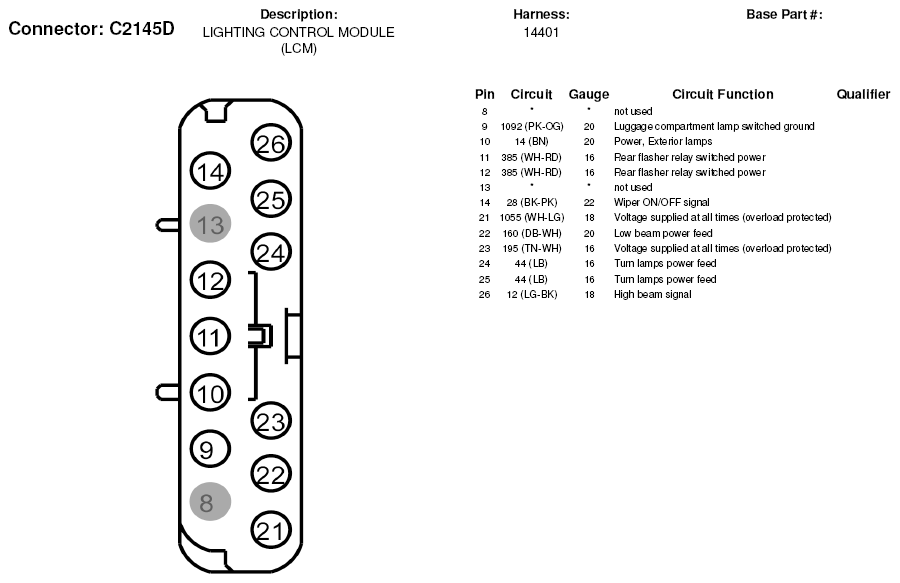

Fig 4: Lighting Control Module Connector End View (C2145D)

Courtesy of FORD MOTOR CO.
