Restraints Control Module (RCM): Notes

NOTE: Carpet is removed for clarity.

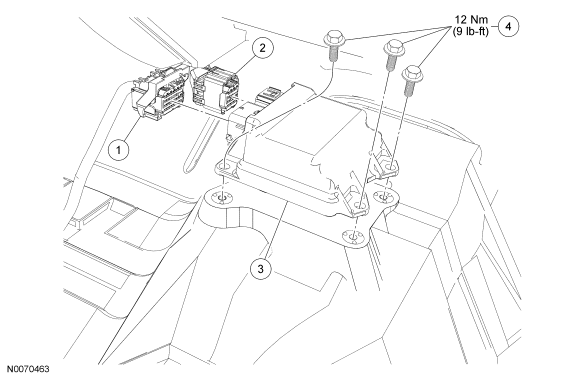

Fig 1: Exploded View Of Restraints Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Large restraints control module (RCM) connector (part of 14A005)
2	-	Small RCM connector (part of 14401)
3	14B321	RCM
4	W707935	RCM bolts
